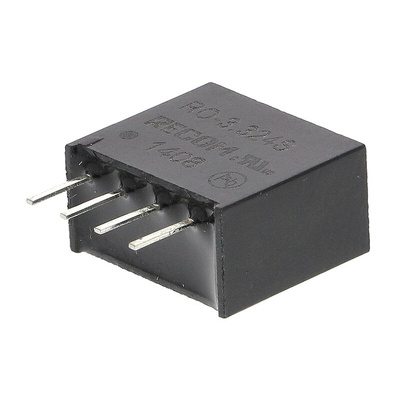

RO-3.324S, Recom RO DC-DC Converter, 24V dc/ 42mA Output, 2.97 → 3.63 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C, Преобразователь

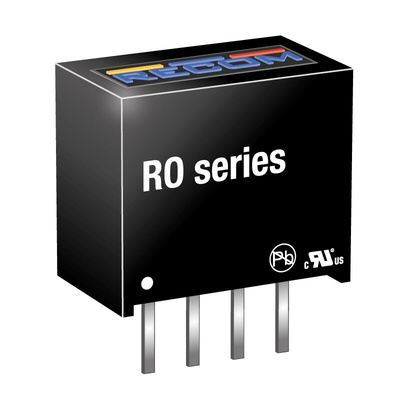

Recom 1W SIP Single Output Unregulated Isolated DC-DC Converter - RO Series

Unregulated outputs
1kVdc isolation
Efficiency at full load up to 85%
Short circuit protection
Fully encapsulated UL94V-0 package
SIP4 industry standard pinout

Note

MTBF to MIL-HDBK 217F
Operating temperature is without derating.

Standards

EN-60950-1

RECOM DC-DC Converter, 1W Power Rating, SIP Package - RO Series - RO-3.324S

When space is at a premium but you need a power supply you can rely on, connect with this DC-DC converter from RECOM. It produces a stable 24V output from 2.97 to 3.63V inputs to keep your low-voltage equipment running smoothly. Thanks to compact dimensions of just 11.5 (L) x 10 (D) x 6mm (H), this slimline piece of kit takes up minimal room, so it's a convenient option for a crowded board. The through-hole mounting method is quick and easy and keeps your connections firmly fixed in place, even in high-vibration applications. Plus, an 85% efficiency rating means you can be sure minimal energy is lost during operation, making this converter a sustainable choice.

• Flame-retardant housing is self-extinguishing in under 10 seconds to help prevent the spread of fire
• Wide operating temperature between -40°C and +85°C for compatibility with extreme conditions
• Standardised SIP-4 package for easy integration into your existing setup

Applications

• Robotics systems
• R&D labs
• Automotive industry

Does this product offer any protection against faults?

Thanks to built-in short-circuit protection and 1kV DC isolation voltage, you can trust this capable device to keep your components safe from surges and other electrical incidents.

Datasheet
