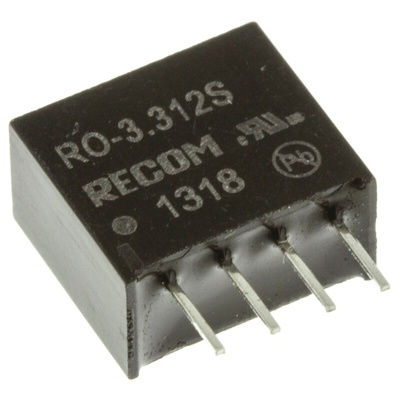

RO-3.312S, Recom RO DC-DC Converter, 12V dc/ 83mA Output, 2.97 → 3.63 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C, Преобразователь

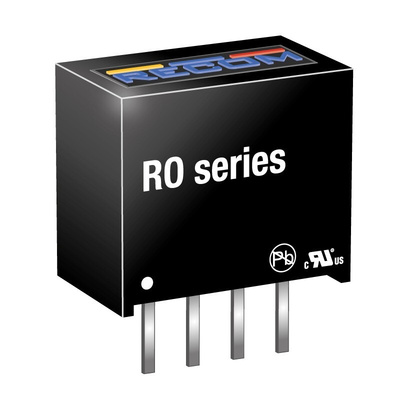

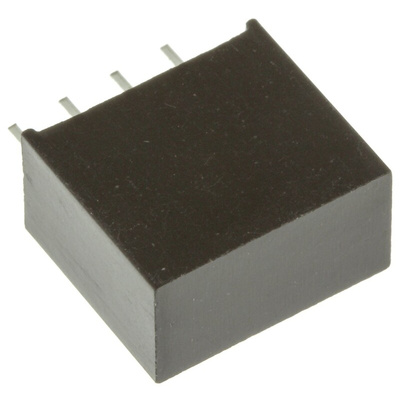

Recom 1W SIP Single Output Unregulated Isolated DC-DC Converter - RO Series

Unregulated outputs
1kVdc isolation
Efficiency at full load up to 85%
Short circuit protection
Fully encapsulated UL94V-0 package
SIP4 industry standard pinout

Note

MTBF to MIL-HDBK 217F
Operating temperature is without derating.

Standards

EN-60950-1

RECOM DC-DC Converter, 1kV DC Isolation Voltage, 470μF Maximum Capacitive Load - RO Series - RO-3.312S

Need a reliable 12V supply for your low-power equipment? Switch to this DC-DC converter from RECOM. It works with an input voltage range between 2.97 and 3.63V to produce a steady output at precisely the right level for your circuit. With an 84% efficiency rating, it's a sustainable option. For maximum peace of mind, inbuilt short-circuit protection and a high 1kV isolation voltage rating mean this sturdy device can handle unexpected electrical incidents with ease, keeping you and your components safe in the event of a fault.

• Fully encapsulated package protects against the rigours of a harsh industrial environment
• Flame-retardant housing is self-extinguishing in under 10 seconds to help prevent the spread of fire
• Standardised SIP-4 package for easy integration into your existing technology
• Quick and easy through-hole mounting method creates a secure connection

Applications

• Medical devices
• Testing and measuring equipment
• Automotive industry

Can this product cope with extreme conditions?

With its wide operating temperature range between -40°C and +85°C, this hardy gadget delivers top performance even in challenging settings.
