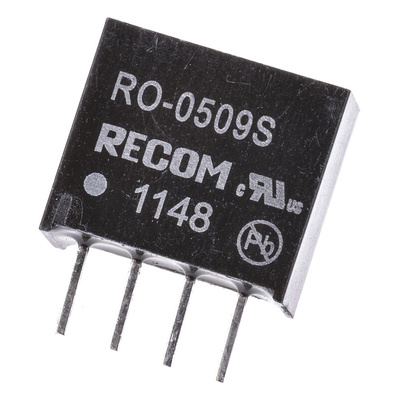

RO-0509S, Recom RO DC-DC Converter, 9V dc/ 111mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C Min, Преобразователь

RECOM DC-DC Converter, 1kV DC Isolation Voltage, 1.2% Line Regulation - RO Series - RO-0509S

Be sure your power supply steps up to the job with this DC-DC converter from RECOM. It takes a 5V DC input and boosts it to a 9V DC output. This lets you feed components such as LCD displays, drivers and transistors without a glitch. Thanks to 1kV isolation and integral short-circuit protection, you can be sure the unit works safely. As it's fully encapsulated, it's reliable in harsh environments and can operate in temperatures between -40°C and +85°C without losing performance.

Features & Benefits

• Through-hole mounting with standard pinout means it slots easily onto your board
• Up to 80% efficiency at full load for minimal waste
• Flame-retardant package helps prevent fire from spreading

Applications

• Audio equipment
• Test and instrumentation devices
• Portable appliances

What's the benefit of using a non-regulated DC-DC converter?

A non-regulated DC-DC converter uses fewer components, so the overall package is compact. This unit has dimensions of 11.5 (L) x 6 (W) x 10mm (H), making it a doddle to squeeze onto packed boards where there's a lot going on.

Datasheet

Selection Guide - WE POWER YOUR PRODUCTS
