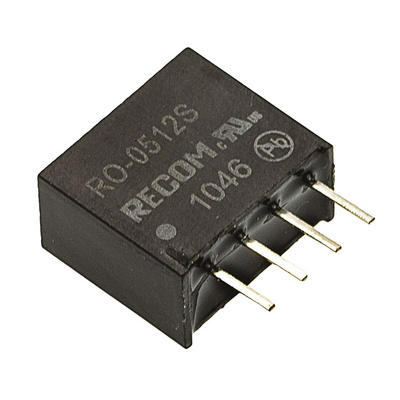

RO-0512S, Recom RO DC-DC Converter, 12V dc/ 83mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C Min, Преобразователь

Recom 1W SIP Single Output Unregulated Isolated DC-DC Converter - RO Series

Unregulated outputs
1kVdc isolation
Efficiency at full load up to 85%
Short circuit protection
Fully encapsulated UL94V-0 package
SIP4 industry standard pinout

Note

MTBF to MIL-HDBK 217F
Operating temperature is without derating.

Standards

EN-60950-1

RECOM DC-DC Converter, 80 to 84% Efficiency, 11.5mm Length - RO Series - RO-0512S

Need a way to keep your power supply steady? This DC-DC converter from RECOM is up to the task. It changes voltages between 4.5 and 5.5V DC to a smooth 12V DC output so your equipment gets the juice it needs to perform properly. The unit's SIP-4 package insulates live components to protect against electric shocks. At only 11.5mm long, this converter is a compact gadget that saves space on densely-packed PCBs.

Features & Benefits

• Short-circuit protection helps prevent damage to equipment
• Self-extinguishing, so boosts fire safety
• Light weight of 1.4g puts hardly any strain on assemblies
• Wide operating temperature range between -40°C and +85°C for use in challenging conditions

Applications

• Medical equipment
• Automotive industry
• Consumer electronics
• Testing instruments
• LED drivers

How do I mount this DC-DC converter?

This is a through-hole mounting unit, with four pins at the bottom to push through the designated spot on your PCB.

What's the difference between an AC-DC and DC-DC converter?

An AC-DC converter changes alternating current into a DC output, whereas a DC-DC converter smooths out incoming direct current values.
