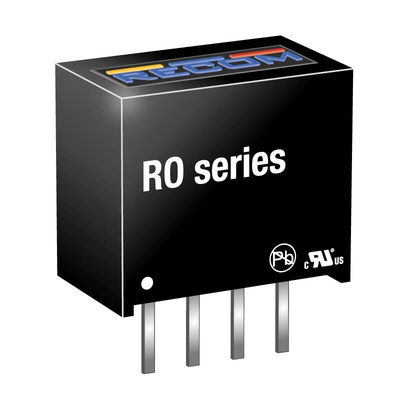

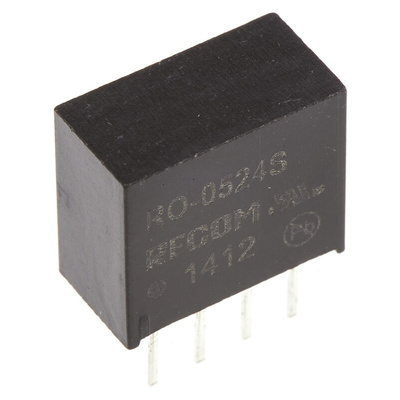

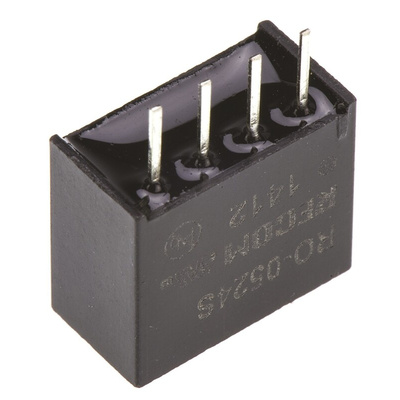

RO-0524S, Recom RO DC-DC Converter, 24V dc/ 42mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C Min, Преобразователь

RECOM DC-DC Converter, 1kV DC Isolation Voltage, 1.4g Weight - RO Series - RO-0524S

If stable power delivery to your PCB-linked parts is what you're looking for, this DC-DC converter from RECOM delivers. It boosts and cleans 5V DC supply signals, removing noise and ripples to deliver a clear 24V DC output. The unit is 85% efficient, so you can rest assured minimal energy is lost to heat. It comes in a non-conductive plastic housing that does double-duty by providing impact resistance as well as insulation to prevent electric shocks. A 1W power rating makes this the right choice for light-duty applications.

Features & Benefits

• Compact dimensions of 11.5 (L) x 6.0 (W) x 10.0mm (H) ensure it fits right into setups with limited space
• Through-hole mounting achieves a permanent, vibration-proof link to your board
• Designed to offer long-term performance, thanks to a mean time between failures of 985,000 hours at +25°C
• Light weight of 1.4g to minimise board strain

Applications

• Gaming consoles
• Medical equipment
• Process and packaging industry

What's the isolation voltage of this DC-DC converter?

Isolation voltage is the amount of surge voltage that the unit can stop from reaching your circuit. For this component, the value is 1kV DC.
