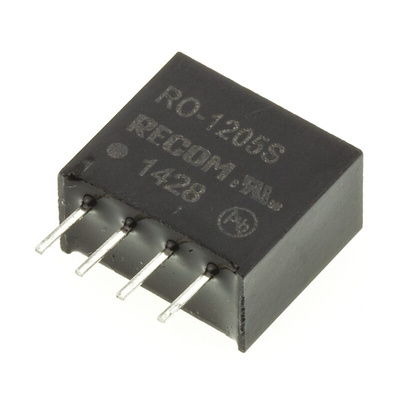

RO-1205S, Recom RO DC-DC Converter, 5V dc/ 200mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C, Преобразователь

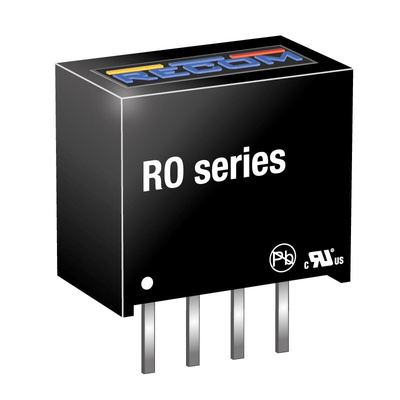

Recom 1W SIP Single Output Unregulated Isolated DC-DC Converter - RO Series

Unregulated outputs
1kVdc isolation
Efficiency at full load up to 85%
Short circuit protection
Fully encapsulated UL94V-0 package
SIP4 industry standard pinout

Note

MTBF to MIL-HDBK 217F
Operating temperature is without derating.

Standards

EN-60950-1

RECOM DC-DC Converter, Single Output, 1kV Isolation Voltage - RO Series - RO-1205S

Need to knock the voltage of a DC energy source down a notch or two? This DC-DC converter from RECOM is the answer. When supplied with 12V, it produces a 5V output with a 200mA current, so you can confidently power up compatible circuits. As it tips the scales at just 1.4g, it doesn't put a strain on your setup. You can even use it in challenging conditions, thanks to its broad operating temperature range between -40°C and +85°C.

• Maximum efficiency of 80% indicates it's an energy-saving component
• Isolated type to prevent noise and ensure reliable signal transfer
• Through-hole design to allow for secure mounting on your PCB
• Mean time between failure at +25°C is 98,500 hours, so it's a dependable choice
• 95% RH maximum operating humidity lets you use it in humid work areas

Applications

• Small-scale electronic appliances
• Automotive sector
• Medical technology

How big is this DC-DC converter?

This compact converter measures 11.5 (L) x 6 (W) x 10mm (H), so it doesn't take up much space on your PCB.
