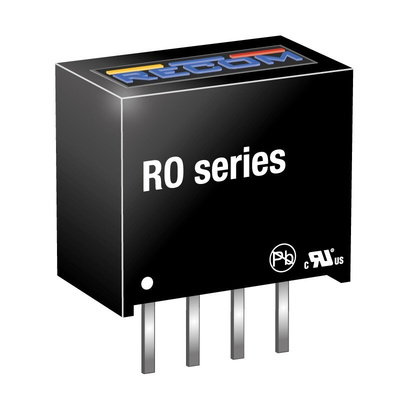

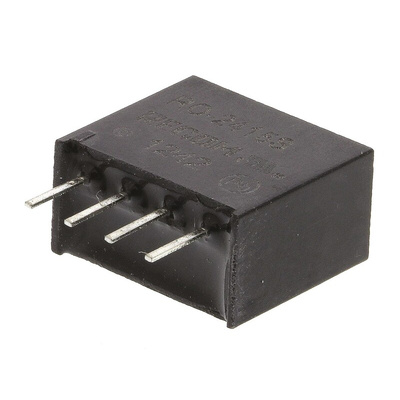

RO-2415S, Recom RO DC-DC Converter, 15V dc/ 66mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C, Преобразователь

RECOM DC-DC Converter, 1kV DC Isolation Voltage, Unregulated - RO Series - RO-2415S

On the hunt for efficient power conversion? Seek out this DC-DC converter from RECOM. The device is compatible with an input voltage range from 21.6 to 26.4V DC and offers a steady 5V DC output, so delivers controlled power that helps to keep components running at the right pace. Efficiency of 78 to 80% means you can rely on the unit to transfer most of its input power to your secondary load. Thanks to its rugged design, this converter handles an operating temperature range between -40°C and +85°C without compromising its power rating of 1W.

Features & Benefits

• Only burns for a brief period in the event of a fire, thanks to its flame-retardant casing
• Industry-standard pinouts for fuss-free mounting on a circuit board
• Light weight of 1.4g, so puts minimal strain on your mounting surface
• Fully encapsulated for protection against environmental contaminants

Applications

• Electronic power supplies
• Industrial data centres
• Security systems
• Military technology

Is this DC-DC converter isolated?

Yes, the device has an isolation voltage of 1kV DC, which means there's minimal risk of noise and distortion interfering with its voltage output. This helps to keep attached equipment running reliably.
