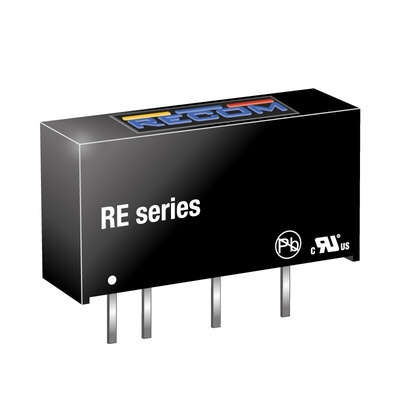

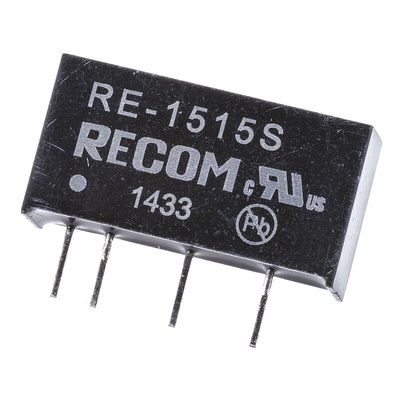

RE-1515S, Recom RE DC-DC Converter, 15V dc/ 66mA Output, 13.5 → 15.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C, Преобразователь

RECOM DC-DC Converter, 84% Efficiency, 1kV DC Isolation Voltage - RE Series - RE-1515S

Keep your electrical kit reliably humming along with this DC-DC converter from RECOM. It streamlines your input to a 15V DC output, so you get a seamless power supply. The fully encapsulated design achieves a stable connection even in tough, vibrating settings. Thanks to a 1kV DC isolation voltage, there’s no need to worry about sudden voltage spikes that could lead to damaging internal failure. The unit's easy to install using secure through-hole mounting to ensure it stays firmly in place.

Features & Benefits

• Load regulation of 10% maintains stability during electrical fluctuations
• Accepts an input voltage range between 13.5 and 15.5 V DC for versatility
• Performs in temperatures between -40°C and +85°C to suit demanding environments
• Industry-standard pin-out to fit neatly into your setup with minimal risk of incorrect connection

Applications

• Consumer electronics
• Mechanical workshops
• Telecommunications networks

What output current does this unit deliver?

It's a fixed output type that provides a 66mA current with output power of 1W.

What size is this DC-DC converter?

It has compact dimensions of 10.2 (H) x 6 (W) x 19.6mm (L) that help maximise board packing efficiency.
