RI-0515S/P, Recom RI DC-DC Converter, 15V dc/ 133mA Output, 4.5 → 5.5 V dc Input, 2W, Through Hole, +85°C Max Temp -40°C Min, Преобразователь

Recom 2W SIP Single Output Unregulated Isolated DC-DC Converter - RI Series

Industrial standard pin-out
No heatsink required
SIP4 package
High efficiency (80% typ)
Capacitor input filter
Isolation voltage 1kVdc (min)
Voltage; input ±10%, output ±5%
UL94V-0 package material

Note

Operating temperature is without derating.
/P suffix denotes continuous short circuit protection.

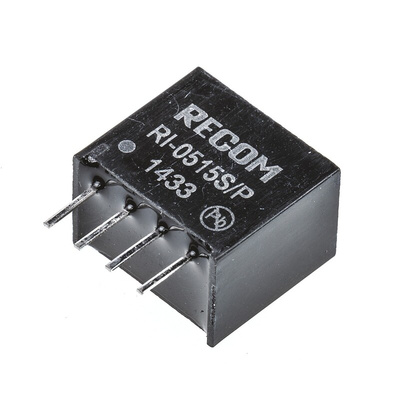

RECOM DC-DC Converter, 15V DC Output Voltage, 133mA Output Current - RI Series - RI-0515S/P

Use this DC-DC converter from RECOM to efficiently power machinery by efficiently raising the voltage supply. Its input voltage range of 4.5 to 5.5V DC and its output voltage of 15V DC mean it's a good choice for use in low-power applications. The compact dimensions of 11.5 (length) x 7.55 (width) x 10.2mm (height) help to maximise space on small or crowded PCBs. Thanks to the unit's broad operating temperature range between -40°C and +85°C, it's suitable for use in harsh industrial environments.

Features & Benefits

• Isolation between the input and output for electrical safety
• Through-hole mounting for a simple and secure attachment to circuit boards
• Light weight of 1.4g to minimise strain on your equipment

Applications

• Industrial automation equipment
• Consumer electronics
• Computer networks

What's an unregulated DC-DC converter?

An unregulated DC-DC converter like this one doesn't have a constant, regulated output voltage. This simplifies the circuitry and helps to keep the component's overall size to a minimum. It's a good choice for applications where an exact voltage output isn't critical.
