RD-0515D, Recom RD DC-DC Converter, ±15V dc/ ±66mA Output, 4.5 → 5.5 V dc Input, 2W, Through Hole, +85°C Max Temp -40°C, Преобразователь

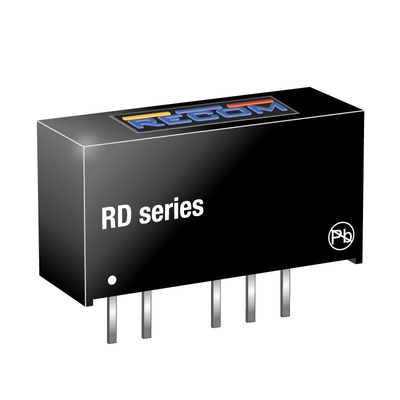

Recom 2W SIP Dual Output Unregulated Isolated DC-DC Converter - RD Series

Unregulated outputs
1kVdc isolation
Power sharing on outputs
Short circuit protected
Efficiency up to 86%
UL94V-0 package material
Industry standard SIP7 package

Note

MTBF to MIL-HDBK 217F.
Operating temperature is without derating.

Standards

EN-60950-1

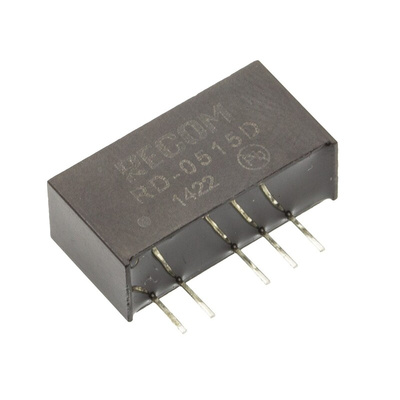

RECOM DC-DC Converter, Dual Output, 1kV Isolation - RD Series - RD-0515D

Get your electrical kit powered up with this 2W DC-DC converter from RECOM. It's a versatile option with two outputs that can deliver ±15V and ±66mA. Simply supply it with 5V DC to begin energising your compatible circuits. Its mean time between failures at +25°C is 98,800 hours, so you can trust it to get on with the job for the long term. Damp conditions are no problem for this hardy device, thanks to its maximum operating humidity of 95% RH.

• Through-hole mounting achieves a vibration-proof connection to your PCB
• Small size of 19.65 (L) x 7.05 (W) x 10.2mm (H), so it's a space-saving component
• Isolated design blocks noise and keeps your transmissions crisp and clear
• Broad operating temperature ranging between -40°C and +85°C for use in harsh work areas
• Light weight of 2.8g to avoid putting pressure on your setup

Applications

• Medical devices
• Renewable energy technology
• Lighting networks
• Automotive industry

How efficient is this product?

The efficiency of this DC-DC converter ranges between 82 and 86%, so you can be sure it's an energy-saving choice.
