RD-1215D, Recom RD DC-DC Converter, ±15V dc/ ±66mA Output, 10.8 → 13.2 V dc Input, 2W, Through Hole, +85°C Max Temp -40°C, Преобразователь

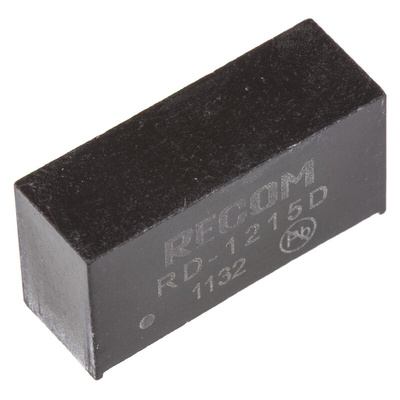

RECOM DC-DC Converter, SIP7 Type, ±15V Dual Output - RD Series - RD-1215D

Split your power supply in two with this DC-DC converter from RECOM. The device takes one 12V DC input and creates a dual output voltage of ±15V. This bipolar output is handy for supplying an operational amplifier where analogue signals and sensors are used. It offers 1kV DC of isolation, as well as short-circuit protection, to ensure it works safely. The converter gives you its full output in extreme temperatures between -40°C and +85°C, so you can depend on it to get on with the job in demanding industrial applications.

Features & Benefits

• Maximum efficiency of 86% means it wastes minimal energy to heat
• Flame-retardant package helps keep your circuits safe
• Mean time between failures of 135,000 hours at +85°C indicates it operates reliably through a long service life
• Light weight of 2.8g makes it suitable to fit inside portable devices

Applications

• Instrumentation devices
• Industrial automation
• Process control
• Safety systems

Does this DC-DC converter take up much circuit board space?

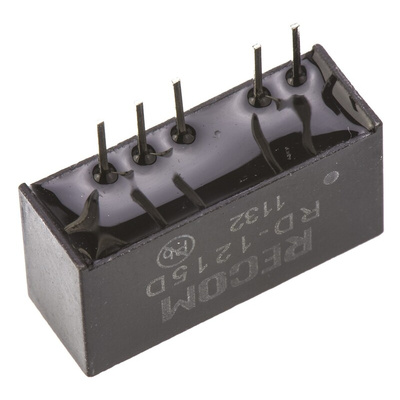

Bundled in a SIP7 case with vertical through-hole pins, this converter is 19.65mm long and 7.05mm wide. These compact dimensions mean it takes up very little board space.

Datasheet
