RKZ-1212S, Recom RKZ DC-DC Converter, 12V dc/ 168mA Output, 10.8 → 13.2 V dc Input, 2W, Through Hole, +85°C Max Temp -40°C, Преобразователь

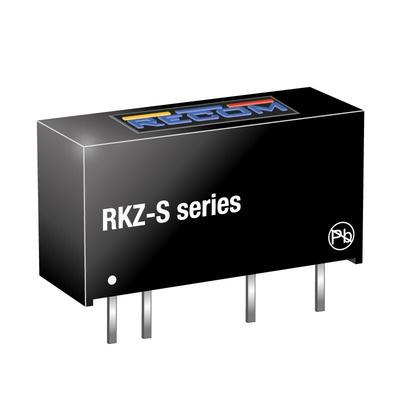

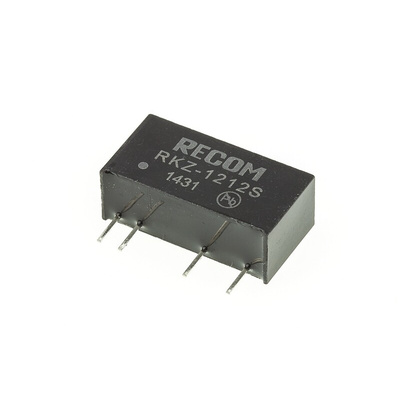

RECOM DC-DC Converter, 3kV DC Isolation Voltage, 1 Output - RKZ Series - RKZ-1212S

Keep your equipment on an even keel with this DC-DC converter from RECOM. It makes sure a connected device receives the stable and reliable 12V DC power supply it needs to perform at its best. Isolation between the input and output breaks the path of faults, so there's minimal chance of electrical spikes sending devices into a meltdown. The unit's isolation also helps to eliminate ground loops and reduce the chance of interference. Low output ripple means that little power is wasted during its switching process, boosting efficiency to 84%.

Features & Benefits

• Free convection air cooling without derating when operating in temperatures between -40°C and +85°C
• Power rating of 2W to meet the needs of demanding systems
• Light weight of 2.8g puts minimal strain on a circuit board

Applications

• Motor drive systems
• Medical and healthcare facilities
• Power utilities
• Robotics

Is this DC-DC converter regulated?

No, this device is unregulated, which helps to keep its footprint small and save on board packing space. Its dimensions are 19.65 (L) x 7.05 (W) x 10.2mm (H).
