R05P205D, Recom DC-DC Converter, ±5V dc/ ±200mA Output, 4.5 → 5.5 V dc Input, 2W, Through Hole, +95°C Max Temp -40°C Min, Преобразователь

Recom 2W SIP Single/Dual Output Medical Approved Unregulated Isolated DC-DC Converter - RxxP2xx Series

UL/CSA and EN safety certified
Approved for Medical applications
Suitable for IGBT applications
Compact SIP7 package
Isolation 6.4K Vdc
Very low isolation capacitance
3 year warranty

Standards

EN-60950-1, UL-60950-1, EN-60601-1

Approvals

UL recognised

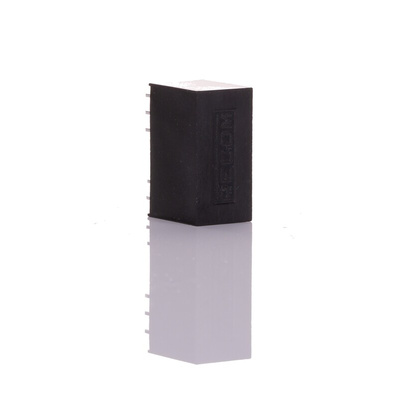

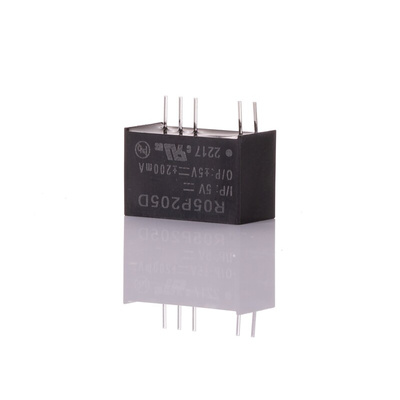

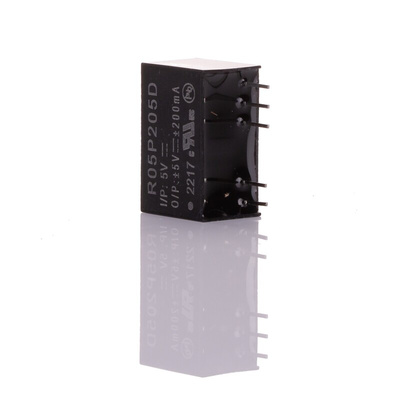

RECOM DC-DC Converter, 2 Outputs, SIP7 Package - RXXP2XX Series - R05P205D

Looking for a reliable power source for your electrical equipment? Turn to this DC-DC converter from RECOM. It’s a compact device that produces dual output current, making it suitable for powering two circuits at the same time, saving space in your setup. Thanks to an isolation voltage of 6.4kV DC, you can be sure this device is protected against short-circuiting. A wide operating temperature range between -40°C and +90°C makes this a reliable option for safe use it in harsh conditions.

Features & Benefits

• Small operating current of 200mA to prevent heat dissipation
• Five connector pins for easy mounting on your PCB
• 5V DC output voltage for powering your light-duty applications
• Dimensions of 19.5 (L) x 12.5 (D) x 9.8mm (W), to take up minimal space on your PCB
• Supplied in tubes of 25 pieces for use in multiple jobs

Applications

• Domestic appliances
• Medical equipment
• Telecommunications systems
• Automotive industry

What's the pin configuration of this unit?

This unit has five pins. Pins one and two handle input voltage. Pins five and seven are the output terminals, while pin six is used as common.
