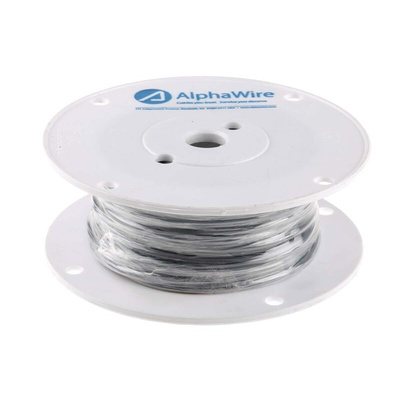

1172L SL005, Alpha Wire Multicore Data Cable, 0.35 mm², 2 Cores, 22 AWG, Unscreened, 30m, Grey Sheath, Кабель

Belden Alpha Wire Data Cable, 3.81mm OD, 300V Voltage Rating - Alpha Essentials Series - 1172L SL005

Looking for a safe communication and control wiring solution? Pick this multicore data cable from Belden Alpha Wire. Thanks to the LSZH jacket and conductor insulation, it limits the release of toxic gases in the event of a fire to boost workplace safety. Two cores, colour-coded black and red, channel a pair of signals simultaneously so you can cut your cabling needs in half. With a bend radius of ten times its 3.81mm outer diameter, it's a flexible option that's easy to handle.

Features & Benefits

• Hitch-free performance in a wide temperature range between -20°C and +75°C
• 300V voltage rating for use with heavy-duty industrial applications
• Unscreened, to boost flexibility

Applications

• Computer installations
• Aerospace
• Medical imaging equipment
• Industrial control setups

How long is this data cable?

This cable comes in a 30m-long roll, so you'll have plenty for lots of cut-and-fix jobs or long-distance installations.

Datasheet

Cable Selection Guide

Datasheet - 1172L SL005
