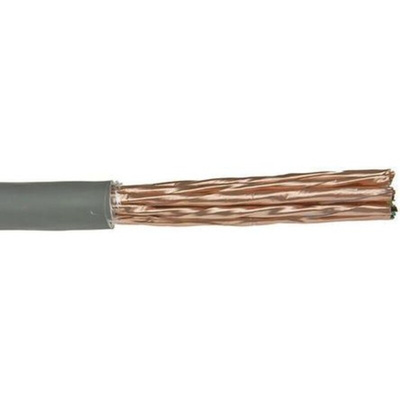

6017L SL005, Alpha Wire Twisted Pair Data Cable, 12 Pairs, 0.35 mm², 24 Cores, 22 AWG, Screened, 30m, Grey Sheath, Кабель

Alpha Wire LSZH Communication and Control Cable

Alpha Wire multipair industrial cables with low smoke, zero-halogen (LSZH) insulation and jacket. This LSZH material can minimise smoke effects and harmful corrosive gases in the event of a fire. Low smoke eases visibility and reduced danger of smoke inhalation, the low toxicity means people suffer no harm from halogenated gases.

Features and Benefits

LSZH materials for low-smoke properties & reduced toxicity
Tinned copper conductors resist corrosion
Stranded conductors for installation flexibility
Multiconductor and multipair configurations
Available in either shielded or unshielded versions
Foil shielded, overall or individual pairs, for EMI protection and improved signal integrity
Colour coded conductor insulation for easy identification

Standards

LSZH Properties: IEC 60332-1, IEC 60754-1, 60754-s, IEC 61034-2

Approvals

UL Type CM, UL VW-1 flame test, CSA Type CMG FT4

Datasheet

Cable Selection Guide
