MEAN WELL Switching Power Supply, RSP-3000-48, 48V dc, 62.5A, 3kW, 1 Output, 180 → 264 V ac, 254 → 370 V, Источник питания

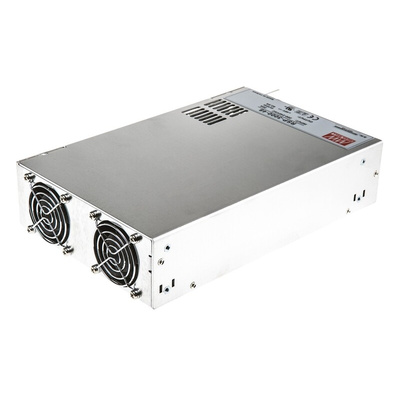

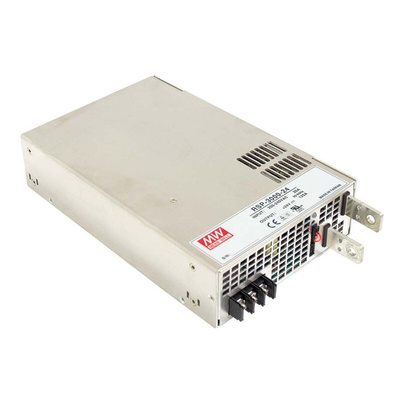

Mean Well Switch Mode Power Supply

The Mean Well RSP-3000 series 3000W single output AC to DC embedded switch mode power supply has an output current rating of 62.5A at 48VDC. It has a universal input supply voltage rating from 180VAC to 264VAC and 254VDC to 370VDC.
Note:
MTBF to MIL-HDBK-217F.

Features and Benefits

AC input active surge current limiting
high-efficiency up to 90%
Built-in active PFC function and PF is less than 0.95
Short circuit protection
Overload protection
Overvoltage and over temperature protection
Fan alarm
Forced air cooling by built-in DC with fan speed control function
Output voltage can be trimmed between 20 and 110% of the rated output voltage
High power density 15.6W/in³
Current sharing up to 3 units
Alarm signal output (relay contact and TTL signal)
Built-in 12V at 0.1A auxiliary output for remote control
Built-in remote ON-OFF control
Built-in remote sense function

Applications

Factory control or automation apparatus
Test and measurement instrument
Laser related machine
Burn-in facility
Digital broadcasting
RF application

Certifications

EN60950-1
UL60950-1
TUV approved
CB approved
EN55032 (CISPR32) / EN55011 (CISPR11)
EN55032 (CISPR32) / EN55011 (CISPR11)
EN61000-3-2
EN61000-3-3
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN61000-4-11

RSP-3000 Series specification sheet

Declaration Of Conformity
