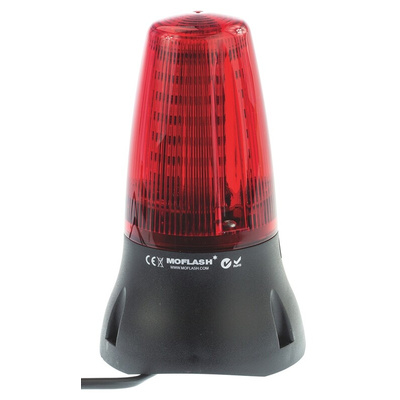

LEDA125-04-02, Moflash LEDA125 Series Red Buzzer Beacon, 230 V ac, IP65, Surface Mount, 90dB at 1 Metre

Compact LED Beacon / Buzzer Combination

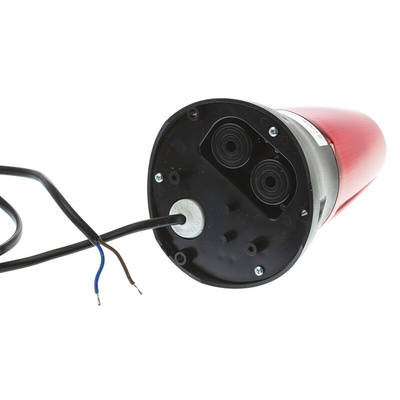

The LEDA 125 Beacon / buzzer combination provides an audible and visual signal which is suitable for fire, security and industrial applications. These beacons offer three alternative light modes: Continuously ON, Rapid Flash (120 FPM) and Standard Flash (60FPM), which can be selected by a dip switch mounted lens side on the PCB. The base of the beacon / buzzer houses two Piezo sounders that are synchronised to the light mode. The AC units are supplied with one meter of flying lead, while the DC units allow for termination inside the base enclosure. An M12 sealing grommet in the base allows for cable entry.

Two signals in one
100000 hours life for LED
Continuously rated
48 LED array ultra bright
360° visibility
Continuously ON, rapid flash (120 FPM) or standard flash (60FPM)
3 point fixing
UV stable polycarbonate lens and ABS base
IP65 protection
RoHS compliant
CE marking

Note

Piezos cannot be controlled independently from the light.

Moflash Red Buzzer Beacon, 230V AC, 90dB - LEDA125 Series - LEDA125-04-02

Enhance safety in your workplace with this red buzzer beacon from Moflash. The LED (light-emitting diode) bulb rotates around the vertical axis to create a continuous flashing effect with a 360° reach for broad visibility. The buzzer emits an audible alert at the same time to provide an additional indicator of a hazard. It produces a volume of up to 90dB (decibels) at 1m, making it easy to hear at a distance. The base plate houses dual circuit boards for the buzzer and light that fit securely into the enclosure for protection against moisture and wear.

Features & Benefits

• Wide operating temperature range of -20°C to +55°C for use in extreme industrial environments
• Flame-retardant ABS (acrylonitrile butadiene styrene) housing material helps prevent the spread of flames in case of a fire
• Polycarbonate lens material is resistant to UV (ultraviolet) rays for outdoor use
• IP65 (ingress protection) rating means the unit can withstand exposure to low-pressure water jets and dust

Applications

• Factory assembly lines
• Fire safety
• Testing facilities

How fast does this light flash?

The light has three modes, so you can choose the most suitable mode for your application. There's a steady light, a standard flash at 60FPM (flashes per minute) and a rapid flash at 90FPM.

LED/Buzzer

Technical Information

Technical Information

Datasheet - LEDA125-04-02
