XUVU06M3KSNM8, Telemecanique Sensors Ultrasonic Block-Style Proximity Sensor, 0 → 3 mm Detection, PNP & NPN Output, 10 →, Датчик

Ultrasonic Label Sensor

For the detection of transparent labels in packaging applications.

Minimum length of label 2mm
Minimum distance between 2 labels, 2mm
Light or Dark programmable switching
M8, 4 pin connector

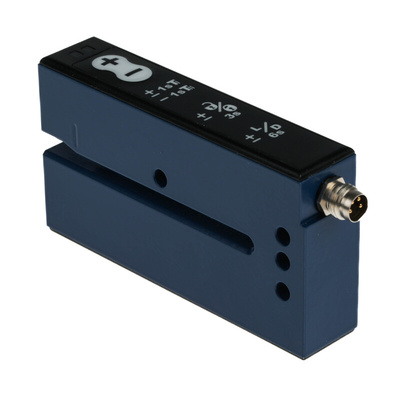

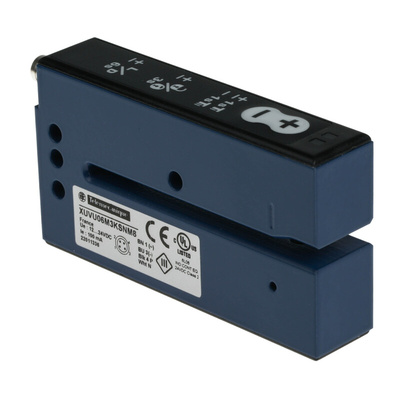

Telemecanique Sensors Proximity Sensor, PNP/NPN Switching, 0 to 3mm Detection Range - OsiSense XU Series - XUVU06M3KSNM8

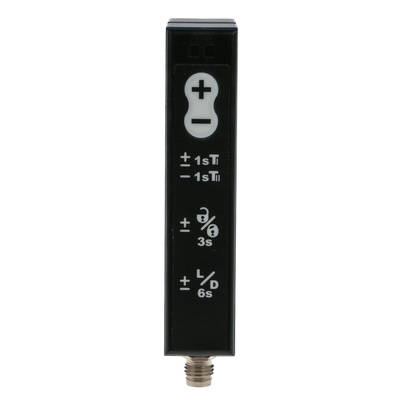

Need to detect transparent labels on a clear web? This eagle-eyed proximity sensor from Telemecanique Sensors makes it simple. The transmitter side of the ultrasonic label fork emits a through-beam, which materials either reflect or absorb. A photo-electric sensor in the receiver side then analyses the light beam to find out if the label is positioned correctly, and triggers the output. This device is easy to programme using the clearly marked buttons on the side.

Features & Benefits

• IP65-rated casing keeps out dust and low-pressure sprays of water
• Yellow LED shows the device's output status at a glance
• Red LED clearly indicates if the keypad is locked or in adjustment mode
• Compact dimensions of 18 (W) x 47 (D) x 92.5mm (H) means it's easy to handle
• Low weight of 13g so it adds minimal strain to your setup

Applications

• Material handling
• Packaging industry
• Food and beverage manufacturing

How do I connect this proximity sensor to my setup?

On the base of the fork there is a 4-pin M8 male connector, which makes installation simple.

Label Detectors

IP65 rated label sensors for detection of fast events (e.g. gaps between labels).
