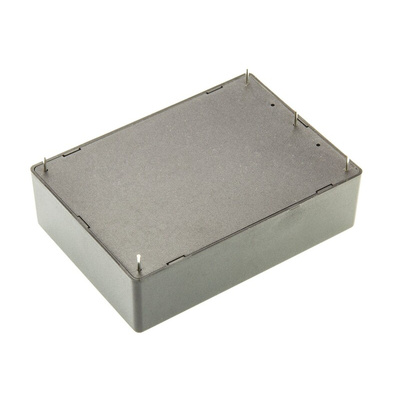

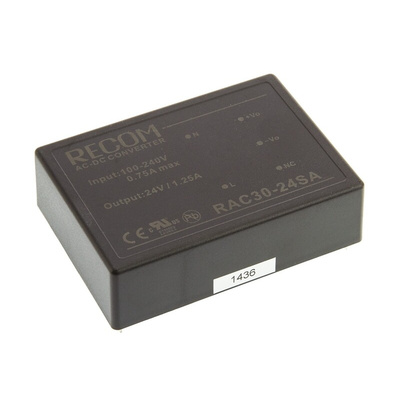

Recom Switching Power Supply, RAC30-24SA, 24V dc, 1.25A, 30W, 1 Output, 90 → 264V ac Input Voltage, Источник питания

RECOM Switching Power Supply, 3000V AC Isolation Voltage, Encapsulated Package Type - RAC30-A Series - RAC30-24SA

Want a glitch-free energy supply? Add this switching power supply from RECOM to your setup. It turns an input voltage ranging from 90 to 264V AC into a smooth and stable 24V DC output. Compact dimensions of 63.5 (W) x 25 (D) x 89mm (L) make a good fit for crowded PCBs. The unit can operate in temperatures between -25°C and +70°C, meaning it's safe to use in challenging conditions. Continuous short-circuit protection reduces the risk of electrical damage to boost safety and give you peace of mind.

Features & Benefits

• 212g weight is easy to handle during installation
• Epoxy-with-fibreglass case protects against impact damage for durability
• Mounts in a snap onto a printed circuit board

Applications

• Marine equipment
• Renewable energy systems
• Broadcasting devices
• Laboratories

How efficient is this switching power supply?

An efficiency rating of 82% means that minimal energy is lost to waste heat, so the unit stays as cool as a cucumber.

How long will this switching power supply last?

It has a mean time between failures of 200,000 hours at +25°C, so you can be confident it's built to stand the test of time.
