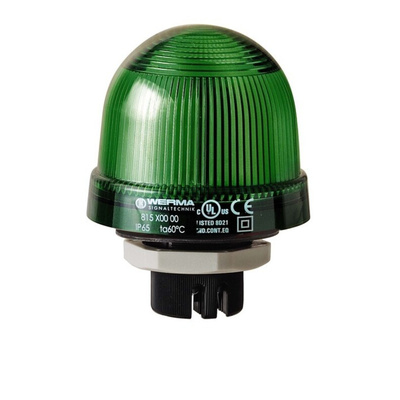

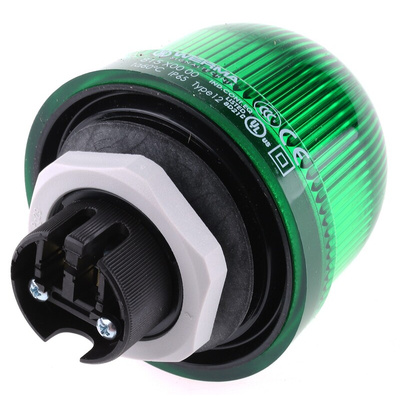

815.200.00, Werma EM 815 Series Green Steady Beacon, 12 → 240 V ac/dc, Panel Mount, Incandescent Bulb, IP65, Маячок

Static High Beacon - 815 Series

Body constructed from ABS and lens Polycarbonate. All units are IP65.

Bulbs must be purchased seperately

Polycarbonate domes have a shock resistance of 20J
Vandal proof construction
Tamper-proof: bulbe change via rear access with bayonet mechanism
37mm mounting hole

WERMA Beacon, 97mm Height, Replaceable Bulb - EM 815 Series - 815.200.00

Direct traffic along your production line without a hitch using this beacon from WERMA. When an incandescent bulb is inserted, it glows brightly to stand out in everyday work environments. The product's dome shape sends light in all directions for efficient signalling. As the beacon's lamp is replaceable, it's sure to keep shining for the long haul.

Features & Benefits

• Meets EN 50014 standards for effective resistance to impacts of 20J
• Twist-locking mechanism reduces the risk of tampering
• IP65 rating signals protection against dust and low-pressure water jets for reliable performance in harsh settings

Applications

• Industrial automation
• Logistics industry
• Renewable energy production

How do I connect this beacon to my power supply?

This unit has screw terminals, so it's a breeze to connect without the need for special tools.

815/816/817 instruction sheet

815/816/817 Installation Permanent/LED/Flashing Data Sheet

Datasheet
