50-57-9406, Molex, SL Female Connector Housing, 2.54mm Pitch, 6 Way, 1 Row, Корпус разъема

Molex SL 70066 Series Connector Housings

The Stackable Linear (SL) 70066 Series of 2.54mm pitch receptacle connector housings from Molex have been designed for low power and wire to board and wire to wire applications across a number of different industries. The SL range offers both flexibility in the design and configuration fittings and can be used in high vibration environments.

Features and Benefits

• 2.54mm pitch
• 2 to 25 circuits
• Dual and single row housing
• High temperature headers enable the use of reflow ovens in fixing headers to the PCB
• Black in colour
• Stackable housing

Note

For Version D see stock number 670-3890

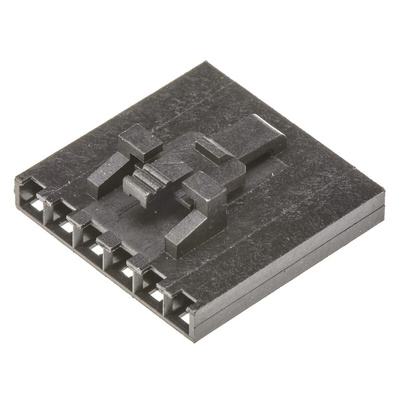

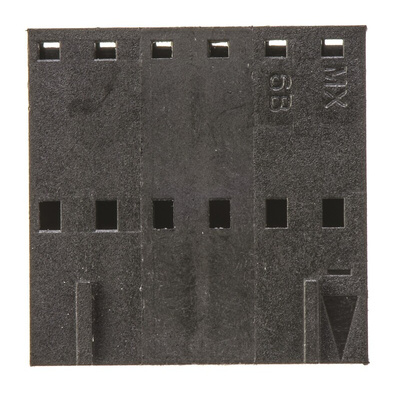

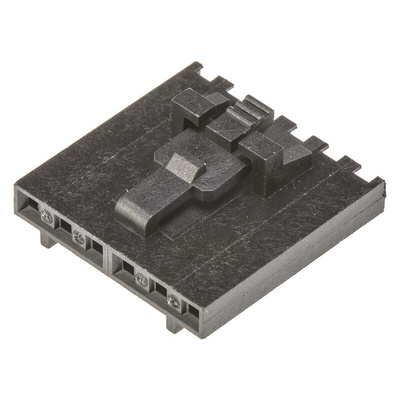

Molex Connector Housing, Female, 15.21 (L) x 6.58 (W) x 15.24mm (D) - SL Series - 50-57-9406

Hunting for an easy way to join wires to a circuit board? Seek out this female connector housing from Molex. It's designed for use with Molex 70058 series crimp terminals (such as 670-6293) and helps transmit clear signals from your PCB to downstream devices. As there are six contacts in a single row, you can control multiple circuits simultaneously and make efficient use of space in your setup. Each contact has a current rating of 3A, meaning the unit's well-suited to light-duty applications.

Features & Benefits

• PET alloy body handles impact and corrosion with ease
• Panel mounting style achieves a secure attachment
• Keyed mating parts support error-free assembly

Applications

• Consumer electronics
• Telecommunication devices

How do I attach this unit to a PCB?

The connector housing can be attached to your PCB using a reflow oven – a handy tool used for soldering components to circuit boards.

2.54mm Molex C-Grid/SL Series
