SD-15B-24, MEAN WELL DC-DC Converter, 24V dc/ 625mA Output, 18 → 36 V dc Input, 15W, Chassis Mount, +60°C Max Temp -10°C, Преобразователь

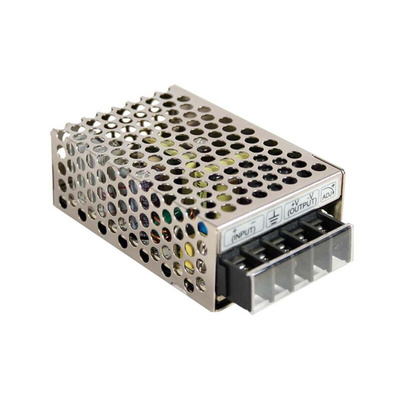

Mean Well (SD-15A-XX) Single Output Enclosed Regulated DC-DC Converter

The SD-15 series by Mean Well offers you a reliable device capable of converting a DC source from one voltage level to another via regulated outputs. Easy to install & maintain, brings you reliable industrial power conversion. The SD-15 meets rigorous industrial standards such as EN 55022 Class B.

Features and benefits:

• 2:1 wide input range

• Great protection against short-circuits and overloads/voltages

• Low ripple noise

• Adjustable output voltages for the three types are; 24 V dc is 21- 26.4 V dc; 12 V dc is 10.8 - 13.2 V dc and 5 V dc is 4.75 - 5.5 V dc

• Built-in EMI filter

• LED power-on indicator

• 2-year manufacturer warranty

Note

De-rating below 0 and above 40°C.

Declaration Of Conformity

SD-15B-24 Datasheet
