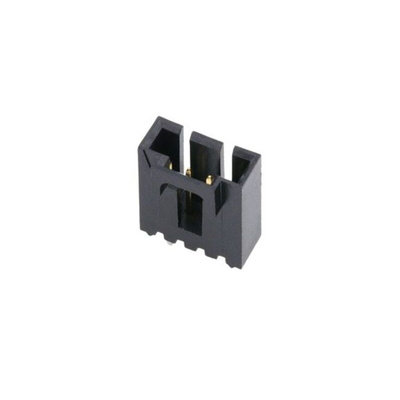

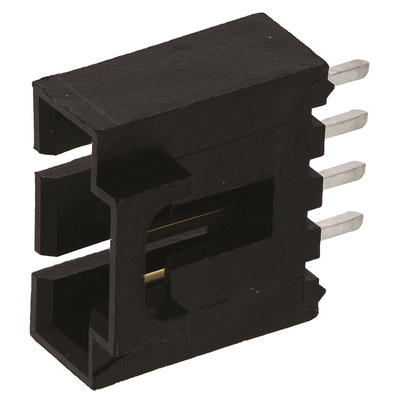

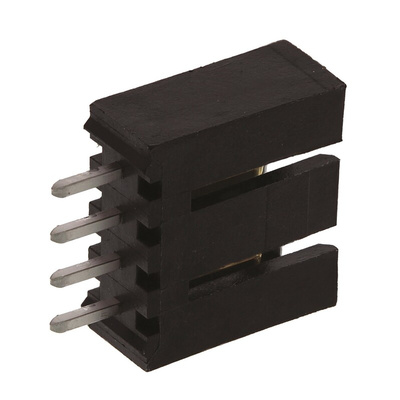

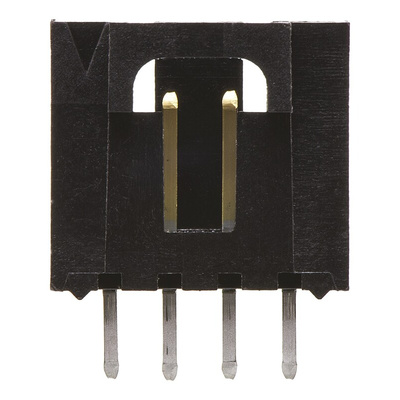

70543-0003, Molex SL Series Straight Through Hole PCB Header, 4 Contact(s), 2.54mm Pitch, 1 Row(s), Shrouded

Vertical Shrouded Headers, 70553 Series

Mates with 70600G and 70600N Series connectors typical stock numbers 679-5928 and 670-3963 respectively
Mating Gold plating thickness 0.38 μm unless otherwise stated
Mating Tin plating thickness 3.75 μm

Molex PCB Header, 3A Current Rating, 250V Voltage Rating - SL Series - 70543-0003

For safe wire-to-board signal transmission in your circuit, go for this PCB header from Molex. It has four highly conductive phosphor bronze contacts to give you multi-component control while reducing your wiring needs. Thanks to its insulating thermoplastic housing, this unit is safe to handle and able to handle the bumps and scrapes that come with harsh industrial environments. Through-hole mounting ensures a secure hold on your circuit board that stands up to vibration.

Features & Benefits

• Pitch of 2.54mm provides safe spacing to prevent short circuits and ensure electrical safety
• Gold-plated contacts resist corrosion, assuring you of long-term performance

Applications

• CNC equipment
• Robotics systems
• Aerospace engineering

Is the header flame-resistant?

Yes. You can trust it to stop burning in 10 seconds or less in the event of a fire, limiting the spread of flames.

2.54mm Molex C-Grid/SL Series

SL Connectors - Brochure

Datasheet

Datasheet

Line Drawing
