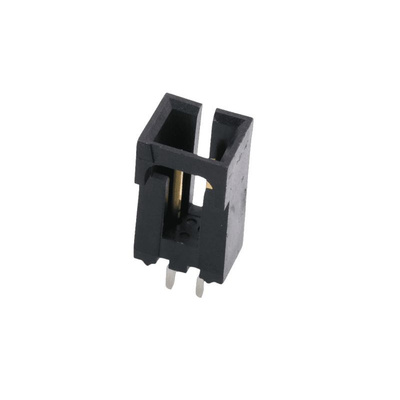

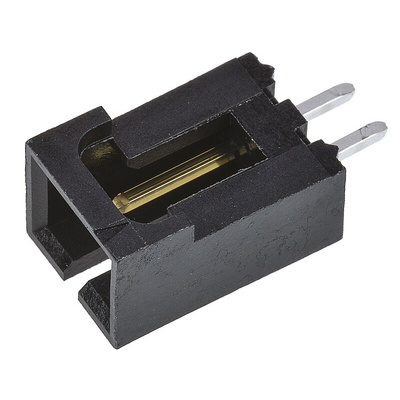

70543-0001, Molex SL Series Straight Through Hole PCB Header, 2 Contact(s), 2.54mm Pitch, 1 Row(s), Shrouded

Vertical Shrouded Headers, 70553 Series

Mates with 70600G and 70600N Series connectors typical stock numbers 679-5928 and 670-3963 respectively
Mating Gold plating thickness 0.38 μm unless otherwise stated
Mating Tin plating thickness 3.75 μm

Molex PCB Header, Shrouded, Phosphor Bronze Contacts - SL Series - 70543-0001

For safe wire-to-board signal transmission in your PCB setup, go for this header from Molex. It has two highly conductive contacts that connect cables to your board, reducing your contact with live parts and keeping electrical hazards at bay. The unit's PA housing withstands impact, making it fit for use in harsh environments. A pitch of 2.54mm between its contacts keeps them apart from each other to prevent short circuits.

Features & Benefits

• Current rating of 3A per contact makes it the right choice for light-duty applications
• Stops burning in 10 seconds or less in the event of a fire, preventing the spread of flames

Applications

• Consumer electronics
• Power transmission systems
• HVAC equipment

How many headers do I get in a pack?

There are 10 units in a pack, so you’ll have enough for a complex assembly.

2.54mm Molex C-Grid/SL Series
