43030-0003, Molex Micro-Fit 3.0 Series Female Crimp Terminal, 24AWG Min, 20AWG Max, Контакты

Molex Micro-Fit 3.0 mm Crimp Contacts

Pin and receptacle crimp contacts for use in the Micro-Fit 3.0 mm plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. The 46235 series crimp contacts are RMF (Reduced Mating Force) contacts which have a reduced engagement and disengagement force for ease of use. These Micro-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility

Features and Benefits

• Multiple points of contact for reliable electrical connection
• Locking tangs for secure connection in housing
• Reduce Mating Force versions for ease of use
• Range of platings and wire sizes for design flexibility

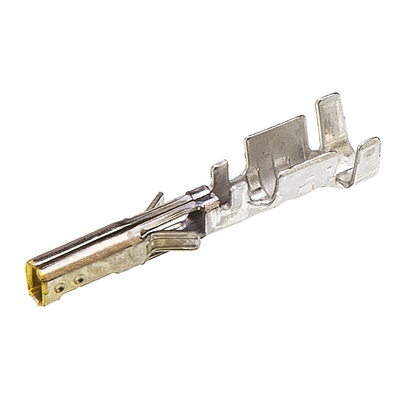

Molex Female Crimp Terminal, 24 to 20AWG - Micro-Fit 3.0 Series - 43030-0003

Create swift wire connections with this female crimp contact from Molex. Its end is square-shaped to fit into Micro-Fit 3.0 and Micro-Fit BMI series connector housings. Protruding metal tangs lock it into a housing to keep it secure and prevent it from pulling loose in the event of vibrations. Connecting a wire is simple, as the unit has multiple arms that will clamp it firmly in place. A maximum current of 5A makes this terminal suitable for low-power applications such as office equipment and safety alarms.

• Strong and hard-wearing phosphor bronze contact material for a durable wire termination
• Corrosion-resistant gold contact plating for a secure connection
• Made with low-halogen materials to maximise the safety of circuits in domestic devices and commercial machines

Applications

• Automotive manufacturing
• Communications and networking
• Medical technology
• Electronics assembly lines

Can I use this crimp terminal in consumer applications?

Yes. It takes wire sizes up to 0.5 mm², so is compatible with electrical circuits in common appliances. A wide operating temperature between -40°C and +105°C means it can be used with white goods such as freezers and domestic light fittings.

Molex Micro-Fit 3.0 Series

Datasheet

Datasheet

Line Drawing - Micro-Fit (3.0) Female Crimp Terminal

Specification Sheet - Micro-Fit Dual Row Connector System
