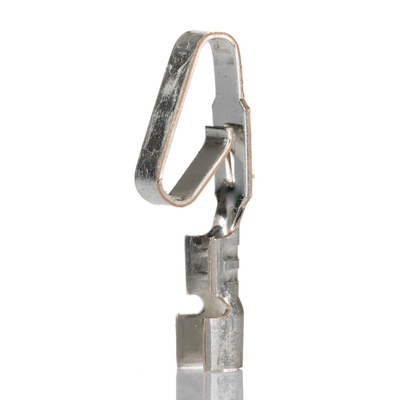

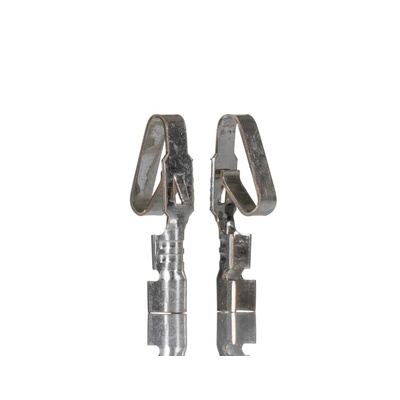

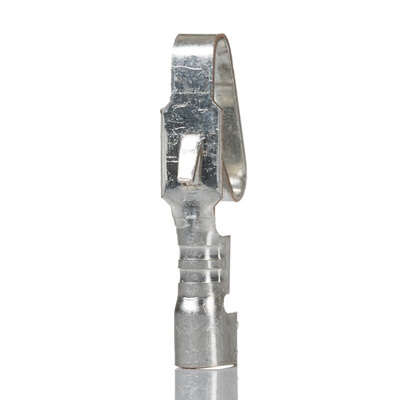

08-50-0134, Molex KK 396 Series Female Crimp Terminal, 26AWG Min, 22AWG Max, Контакты

18 to 26 AWG Crimp, Female, Connector Contacts

Molex, the 2478 and 2578 Series connector contacts feature a dual cantilever design. The square post contact area keeps contact with the male pin header through spring-like contact. A locking tang prevents terminal back out once loaded in housing.

Features:

• Wire gauge of 18 to 26 AWG
• Brass or Phosphor Bronze material
• Tin or Gold Contact Plating

Applications:

• Automotive Industry
• Consumer Electronics
• Data/Computing
• Medical Industry
• Communications
• Networking

Molex Crimp Terminal, Phosphor Bronze Contact Material, Tin Contact Plating - KK 396 series - 08-50-0134

Making multiple connections to your PCB is a breeze with this crimp terminal from Molex. The female connector is designed for use with KK 396-series connector housings (such as 679-5072) and accepts wire sizes between 22 and 26AWG. The square post area uses spring-like contact to keep a connection with the male pin header. A locking tang ensures the terminal stays firmly in place once it's loaded, so you can count on a firm hold, even on moving machinery.

Features & Benefits

• Phosphor bronze material offers strength and high conductivity for reliable signal transmission
• Tin plating resists corrosion for a long service life
• Dependable in temperatures from 0°C to +75°C

Applications

• Medical facilities
• Data communications
• Automotive sector

Why choose crimp terminals?

Crimping a wire ensures a gas-tight seal, which maximises the electrical contact area and supports steady transmission. With oxygen and moisture shut out, the wire is less vulnerable to corrosion.

Note

2578 Series

3.96mm Molex KK Range

Crimp terminal (3.96)/.156 centers 22 to 26 awg wire Drawing

Datasheet - 08-50-0134
