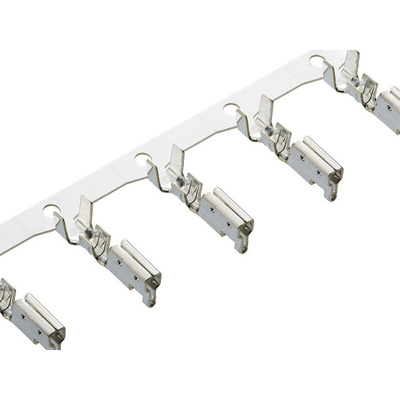

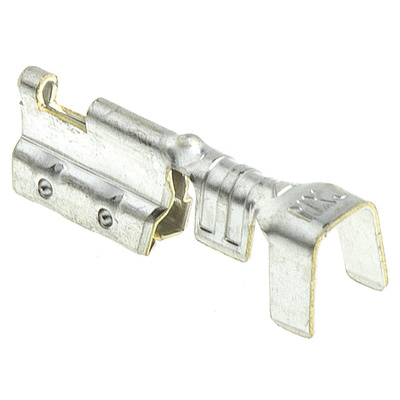

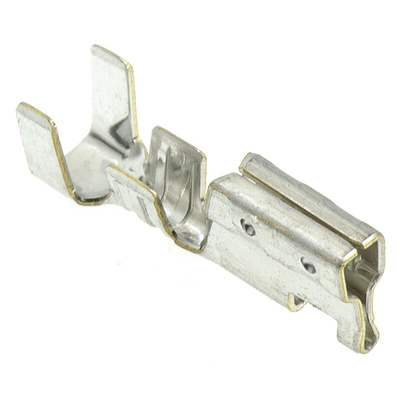

08-70-1030, Molex SPOX Series Female Crimp Terminal, 24AWG Min, 18AWG Max, Контакты

Molex SPOX Receptacle and Pin Terminals

Our range SPOX receptacle and pin terminals are compatible for use with SPOX series plugs and receptacle housings.

Features and Benefits:

• Spring box style design
• High electrical reliability
• Crimp or compression termination interface style
• Wire size ranges from 28 AWG to 18 AWG

This design also protects the mating face area and prevents fish-hooking from wires during handling.

Application:

• Communication
• Networking

Molex Crimp Terminal, Brass Contact Material, 7A Maximum Current Per Contact - SPOX Series - 08-70-1030

Got a loose connection on your circuit board? Tighten things up with this crimp terminal from Molex. It helps you reliably connect a wire to your PCB, which boosts performance and minimises maintenance. As its crimp connection method protects against dust and moisture, airborne contaminants can't interfere with your connection. The terminal resists high temperatures and heavy vibration, making it a practical choice for use in mobile machinery.

Features & Benefits

• Accepts wires ranging in size from 24 to 18AWG for versatility
• Low halogen, meaning it releases minimal toxic fumes when heated
• Corrosion-resistant brass construction for safe use in humid locations

Applications

• Industrial automation
• Data and control centres
• Automotive manufacturing
• Distribution facilities

What tools do I need to remove a wire from this crimp terminal?

All you need is a manual extraction tool (525-0373)to quickly remove wires from the terminal with minimal risk of conductor damage.

3.96mm Molex SPOX Range

The SPOX range has a terminal which is like a "spring box". This design enables multiple points of contact which protects the mating interface area and also prevents fish-hooking from wires during handling.

Datasheet

Line Drawing - 08-70-1030
