16-02-0104, Molex SL Series Female Crimp Terminal, 24AWG Min, 22AWG Max, Контакты

Molex SL Crimp Contacts, 70058, 71851 and 70021 Series

These ranges of SL series crimp terminal contacts offers to choose from male or female contact, wire size between 30 to 22 AWG, gold or tin contact plating.

For 70066 series SL crimp housings see stock number 670-3843 typically
For 70066D and 70107 series SL crimp housings see stock numbers 670-3890 and 670-4098 typically

Applications:

• Automotive
• Commercial Vehicles
• Consumer Electronics
• Portable Devices
• Medical Industry
• Communications
• Networking

Note

For Reference only: 70058 and 71851 Series also used with 70450 Series Housings

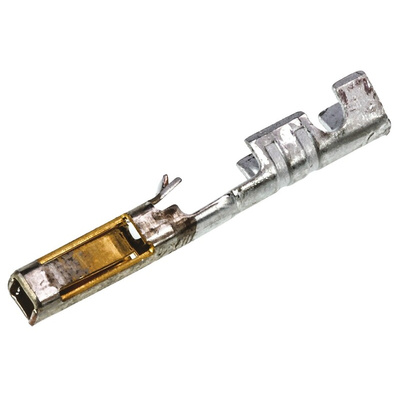

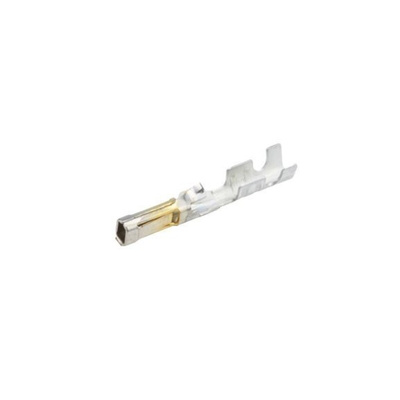

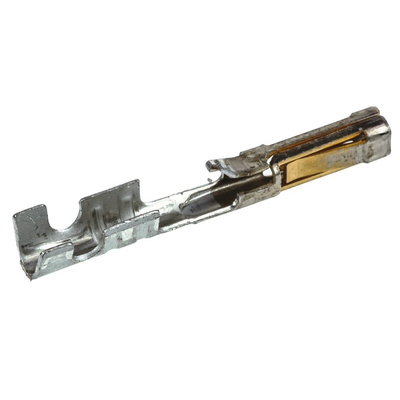

Molex Crimp Terminal, Phosphor Bronze Construction, 0.073g Weight - SL Series - 16-02-0104

To ensure your circuit-board signals stay on track, reach out for this crimp terminal from Molex. It lets you quickly and securely terminate wires to your PCB, so there's no need to stress about loose connections. Thanks to its crimp technology, you get a reliable, gas-tight join that ensures moisture and airborne contaminants are firmly shut out. Tolerance for temperatures between -40°C and +105°C means you can depend on reliable performance, even in tough settings.

Features & Benefits

• Fatigue-resistant phosphor bronze construction holds up to wear
• Easy to terminate using a manual crimping tool
• Low-halogen, meaning it emits minimal toxic fumes when heated

Applications

• Electronics manufacturing
• Aerospace sector
• Automotive industry
• Power utilities

Is this crimp terminal plated?

Yes, it has corrosion-resistant gold plating, so it's suitable for use in humid locations. The plating's smooth finish also supports a consistent connection.

2.54mm Molex C-Grid/SL Series

Datasheet

Datasheet

Line Drawing - 16-02-0104
