50079-8100, Molex PicoBlade Series Female Crimp Terminal, 28AWG Min, 26AWG Max, Контакты

Molex PicoBlade Crimp Contacts - 50058, 50079 and 50125 Series

Crimp pin and receptacle contacts for use in PicoBlade receptacle and plug housings. These PicoBlade crimp contacts feature a two-point contact design which provides a reliable electrical connection in low current, low voltage and high vibration conditions. The contacts are tin plated and are available for use with wire size ranges of 26 AWG to 28 AWG and 28 AWG to 32 AWG.

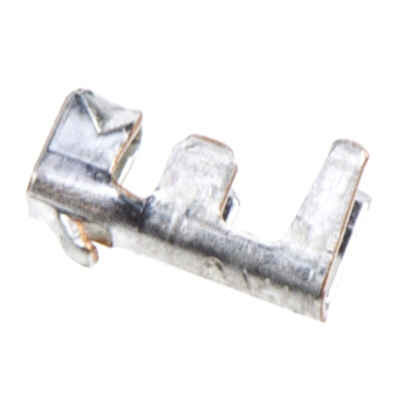

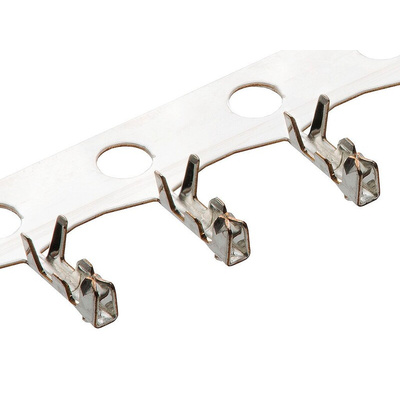

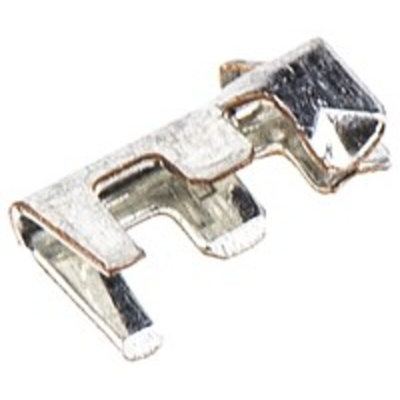

Molex Crimp Terminal, Phosphor Bronze Contact Material, 1A Maximum Current Per Contact - 50079 Series - 50079-8100

Bridge the gap between a cable and circuit board with this crimp terminal from Molex. It's a versatile option designed for use with PicoBlade receptacles and plug housings. The highly conductive phosphor bronze body makes the unit a reliable signal transmission medium for connecting stranded wires to PCB headers. Tin plating improves its resistance to corrosion, so you can be sure of long-lasting service, even in challenging industrial settings.

Features & Benefits

• Accommodates cable sizes between 28 and 26AWG, for easy compatibility
• Simple crimp termination method ensures a firm link with minimal effort
• Current rating of 1A means it's suitable for low-power systems
• Comes in a pack of 100, so you'll have plenty for lots of jobs

Applications

• 3D printers
• Telecommunications industry
• Security systems

What's the PicoBlade connector system?

Items in Molex's PicoBlade connector system have a two-contact design and a friction lock to achieve reliable electrical connections.

1.25mm Wire to Board - Molex PicoBlade™
