03-06-2032, Molex, STANDARD .062" Male Connector Housing, 3.68mm Pitch, 3 Way, 1 Row, Корпус разъема

Standard .062" Plugs

A range of 1.57mm Diameter Standard .062" Pin and Socket Plug Housings for use with crimp terminal contacts Series 1560/1561 stock number 178-6907 typical.

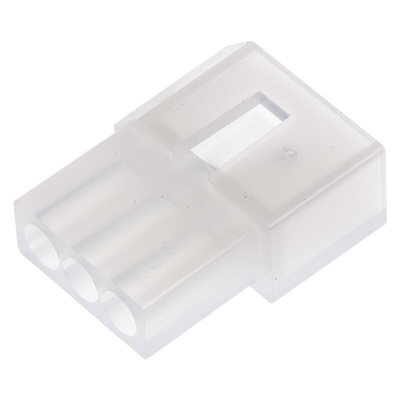

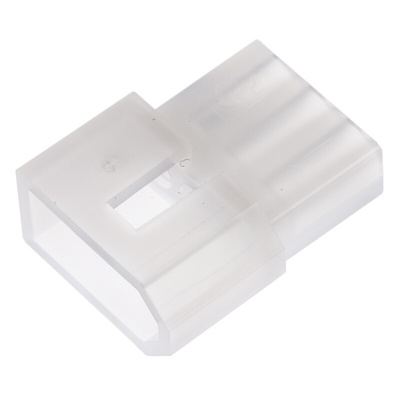

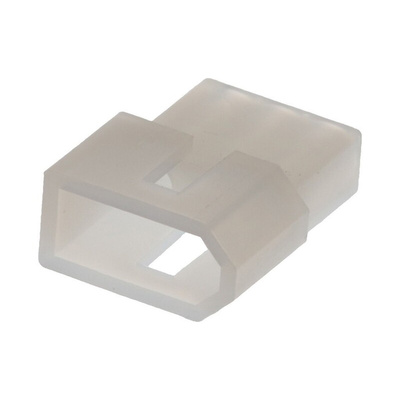

Molex Connector Housing, Cable Mounting, Straight Body Orientation - STANDARD .062" Series - 03-06-2032

Power up and protect your wire-to-wire connections using this handy connector housing from Molex. It has three contact slots to hold your crimp terminals firmly in place. As there's a built-in friction lock, connectors remain secure throughout mechanical vibrations. Circuit building is a breeze thanks to a polarised design that minimises connection errors and cuts out the damage they can cause. The durable nylon body is resistant to wear, making this housing suitable for use in demanding industrial settings.

Features & Benefits

• 3.68mm pitch makes it a good choice for limited spaces
• Broad operating temperature range between -40°C and +105°C for use in harsh environments

Applications

• Automotive electronics
• Consumer appliances
• Data networking and servers

Which type of crimp terminals fit into this housing?

This unit is compatible with the Standard .062" system and accommodates male or female round crimp terminals.

Molex 1625 Series (0.062in./1.57mm)

A range of Molex Standard .062" products that are suitable for either Power or Signal applications. Housings of the Standard .062" system are polarized and locking is by passive (friction) lock between the plug and the socket via a projection moulded on to the socket. The Standard .062" system housings take male or female round crimp terminals which allows for orientation in any direction.

Datasheet

Line Drawing
