03-06-2023, Molex, STANDARD .062" Male Connector Housing, 3.68mm Pitch, 2 Way, 1 Row, Корпус разъема

Plugs

A range of 1.57mm Diameter Standard .062" Pin and Socket Receptacle Housings for use with crimp terminal contacts Series 1560/1561 stock number 178-6907 typical.

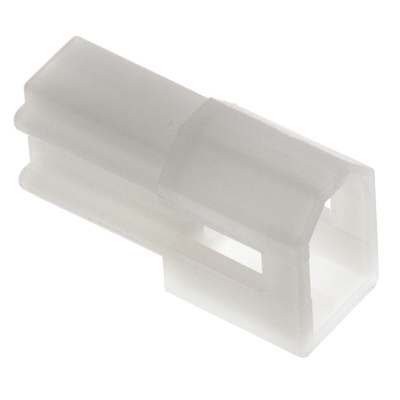

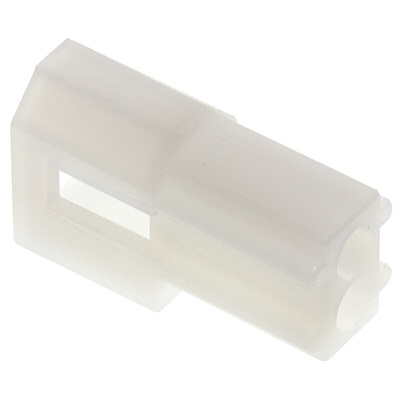

Molex Male Connector Housing, 3.68mm Pitch, 2 Ways - STANDARD .062" Series - 03-06-2023

Safely house your power and wire-to-wire connections in this receptacle from Molex. It features two sections to hold your choice of male or female crimp terminals or PC tail terminals. A built-in friction lock keeps these connectors secure in the housing. The unit's polarised housing design prevents incorrect connections, making circuit-building easier. It's made from nylon material that's strong and resistant to wear for long-lasting performance. This makes it a suitable option for use in demanding settings such as industrial automation.

• Wide operating temperature between -40°C and +105°C for use in harsh conditions including server rooms and car electronics
• Moulded socket for a simple, clip-together assembly that saves time
• Made with flame-retardant thermoplastic that burning stops within 60 seconds after ignition, to improve fire safety

Applications

• Networking and computing
• Consumer white goods
• Automotive electronics

What's the maximum current I can use safely with this connector housing?

A current of 5A per contact is the maximum this housing can handle, making it suitable for low-power applications such as refrigerator control circuits and fan tray assemblies.

Molex 1625 Series (0.062in./1.57mm)

A range of Molex Standard .062" products that are suitable for either Power or Signal applications. Housings of the Standard .062" system are polarized and locking is by passive (friction) lock between the plug and the socket via a projection moulded on to the socket. The Standard .062" system housings take male or female round crimp terminals which allows for orientation in any direction.

Datasheet

Line Drawing

Specification Sheet - 03-06-2023
