03-09-1032, Molex, STANDARD .093" Female Connector Housing, 5.03mm Pitch, 3 Way, 1 Row

Plugs and Receptacles, 1396 Series

Use with: 1377 Series pc tail female terminals (typical stock number 679-4792 ) and 1380 Series male terminals (typical stock number 670-0260 )

Note

For Reference only, use with: 1189; 1190; 1376; 1381; 1433; 1434; 1973; 2151; 2273; 2870; 2871; 4272; 4550; 6271; 6310; 42477 and 42478 Series terminals.

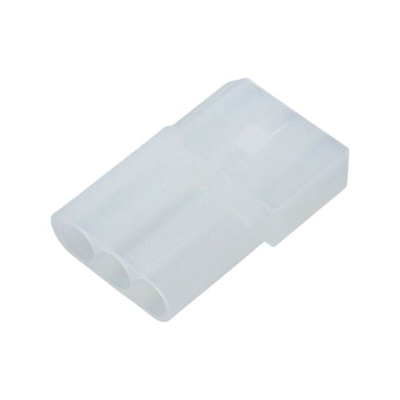

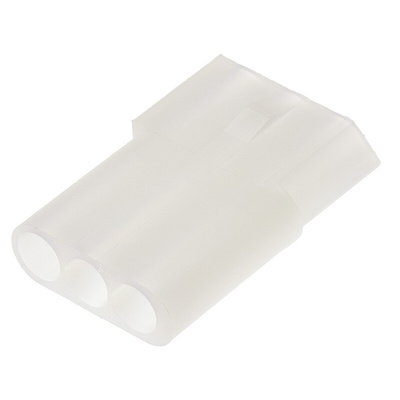

Molex STANDARD .093" Series Connector Housing, Female, Free Hanging Mount - 03-09-1032

This connector housing from Molex is a female connector with a straight orientation, designed for free hanging applications. With 3 contacts, it offers a crimp termination method and a pitch of 5.03 mm. Ideal for high current applications, this connector is part of the Molex 1396 series.

Features & Benefits

• Straight orientation for easy installation
• Female connector housing for versatile applications
• Free hanging design allows for flexibility in use
• 3 contacts connector for reliable connections
• Crimp termination method ensures secure connections
• High current rating of 14A for power heavy applications
• Molex 1396 series compatibility for seamless integration
• Standard .093" connector pitch for universal use

Applications

• Used in wire-to-wire connections for power applications
• Ideal for automation systems requiring reliable data transmission
• Perfect for electrical systems in control panels and machinery

Can it handle high current loads?

Yes, this connector housing has a maximum current rating of 14A, making it suitable for high-current applications.

Is this connector suitable for free hanging applications?

Yes, this female connector housing is specifically designed for free hanging installations for added flexibility.
