03-09-1041, Molex, STANDARD .093" Female Connector Housing, 5.03mm Pitch, 4 Way, 1 Row

Plugs and Receptacles, 1490 Series

Use with: 1377 Series pc tail female terminals (typical stock number 679-4792 ) and 1380 Series male terminals (typical stock number 670-0260 )

Note

For Reference only, use with: 1189; 1190; 1376;1381; 1433; 1434; 1973; 2151; 2273; 2870; 2871; 4272; 4550; 6271; 6310; 42477 and 42478 Series terminals. Mates also with 3099 shrouded PCB connectors.

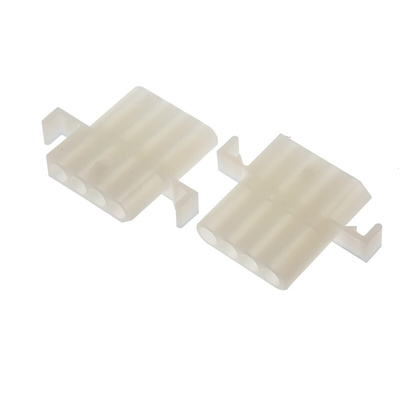

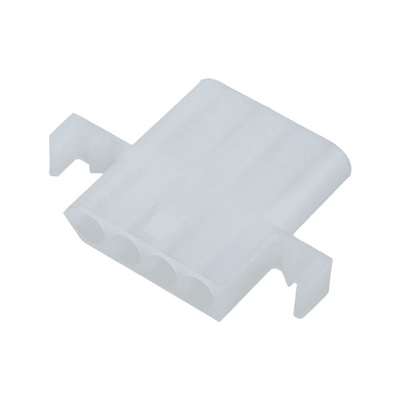

Molex Connector Housing, Straight Body Orientation, Nylon Construction - STANDARD .093" Series - 03-09-1041

Hook up wire-to-wire and power connections in a flash using this connector housing from Molex. It's a female component that connects with compatible male plugs in the STANDARD .093" series for speedy, fuss-free circuit assembly. There are four contacts that are capable of handling male or female crimp terminals, making it a versatile choice for automated setups. This connector housing is easy to mount too, thanks to a pair of pre-bent ears that let you fix it directly to your panel.

Features & Benefits

• Performs reliably under challenging conditions with an operating temperature range between -40°C and +105°C
• Flame-retardant, low-halogen design for fire safety
• Durable nylon body is resistant to wear, so delivers a long service life

Applications

• Communications networking
• Data servers
• Automotive manufacturing

What is the current rating of this unit?

A maximum current of 14A per contact makes this connector housing suitable for demanding applications.

Molex 2.36mm Diameter Standard .093" Pin and Socket Range

.093/(2.36) Housing Plug and Receptacle 4 ckt .198(5.03) Ctrs Drawing

Line Drawing

Datasheet - 03-09-1041
