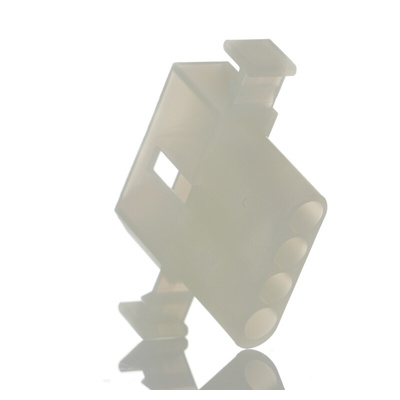

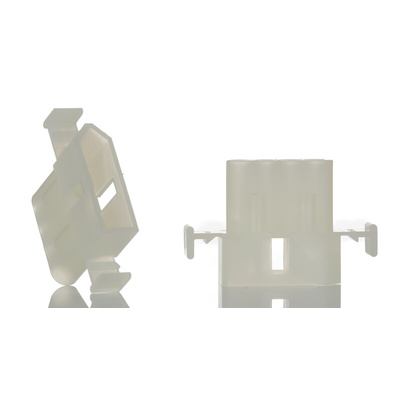

03-09-2041, Molex, STANDARD .093" Male Connector Housing, 5.03mm Pitch, 4 Way, 1 Row, Корпус разъема

Plugs and Receptacles, 1490 Series

Use with: 1377 Series pc tail female terminals (typical stock number 679-4792 ) and 1380 Series male terminals (typical stock number 670-0260 )

Note

For Reference only, use with: 1189; 1190; 1376;1381; 1433; 1434; 1973; 2151; 2273; 2870; 2871; 4272; 4550; 6271; 6310; 42477 and 42478 Series terminals. Mates also with 3099 shrouded PCB connectors.

Molex Connector Housing, 14A Current Rating, Pack of 10 - STANDARD .093" Series - 03-09-2041

Click new components into your board-mounted system with this connector housing from Molex. It easily slots into regulation sockets (such as 679-4925), cutting the hassle of swapping devices. By completing up to four connections at once, the plug makes quick work of wiring tasks. Secure crimp mounting means it keeps a tight hold on its cables against heavy movement. As the unit's made from robust nylon, you can trust it to shrug off damage caused by knocks and scrapes.

Features & Benefits

• Polarised design to minimise the risk of misalignment and achieve a secure connection
• Handles current up to 14A for use with demanding systems
• Pitch of 5.03mm for wide compatibility

Applications

• Server management
• Control devices
• Office equipment

Can I fix this housing to a panel?

Yes, you can mount the unit to a panel using its built-in ears, which help you achieve a secure fit.

Molex 2.36mm Diameter Standard .093" Pin and Socket Range

.093 /(2.36) Housings Plug & Receptacle 4 ckt .198/(5.03) CL Drawing

Line Drawing

Datasheet - 03-09-2041
