09-50-3041, Molex, KK 396 Female Connector Housing, 3.96mm Pitch, 4 Way, 1 Row, Корпус разъема

Molex KK Range of 2139 Series Housings

This range of Series 2139 Connector Housings feature a 3.96 mm pitch and form part of the KK Interconnect system from Molex, which provides a simple and economical way to make multipole connections to printed circuit boards. These types of fittings are an essential component that offer protection for the connection it is housing.

Features and Benefits

• 3.96 mm pitch
• Wire to board configurations and fittings
• Natural (white) colour
• Single Row
• Friction lock prevents accidental disconnection
• Ramp and polarising ribs
• Accepts KK 2478 and 2578 series terminals

Note

For suitable crimp tools see, for example, stock number 450-391

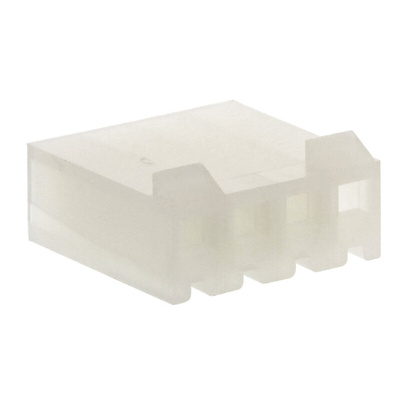

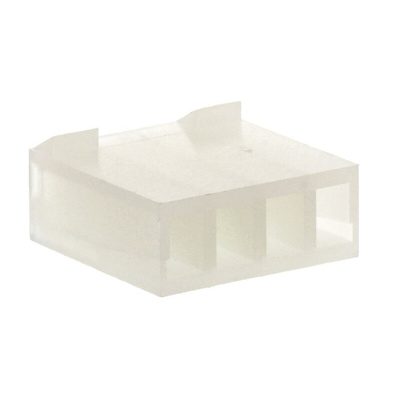

Molex Female Connector Housing, 3.96mm Pitch, 4 Way - KK 396 Series - 09-50-3041

Use this connector housing from Molex to securely hold four crimp terminals in a single row. It has four segments to take multiple contacts without them touching. A friction lock prevents accidental disconnection after insertion, giving you a reliable interconnection between wires and headers. The unit's polarising pegs prevent incorrect mating, making for quick and easy assembly. A tough nylon construction means it's resistant to wear, corrosion and chemicals. Use this housing in low-power and mid-power settings or wire-to-board circuits such as computer peripherals, gaming machines and patient monitors.

• Made from thermoplastic material that burns for no more than 60 seconds after ignition for improved fire safety
• Weight of 1.040g to help keep internal wiring light in portable devices
• Accepts KK 2478 and 2578 series crimp terminals for flexibility of wire sizes and contact materials

Applications

• Medical devices
• Automotive industry
• Consumer electronics
• Industrial automation

What pitch does this connector housing have?

It has an industry-standard pitch size of 3.96mm. This means it's compatible with common consumer and commercial applications including in-car controls and smoke detectors.

3.96mm Molex KK Range

Datasheet

Line Drawing

Specification Sheet - 09-50-3041
