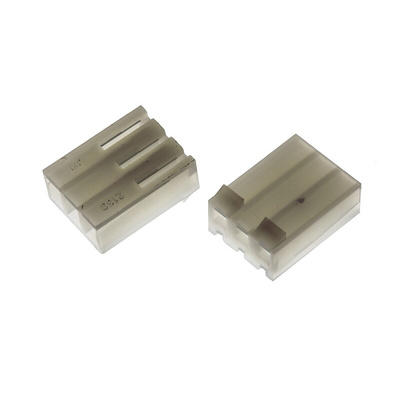

09-50-3031, Molex, KK 396 Female Connector Housing, 3.96mm Pitch, 3 Way, 1 Row, Корпус разъема

Molex KK Range of 2139 Series Housings

This range of Series 2139 Connector Housings feature a 3.96 mm pitch and form part of the KK Interconnect system from Molex, which provides a simple and economical way to make multipole connections to printed circuit boards. These types of fittings are an essential component that offer protection for the connection it is housing.

Features and Benefits

• 3.96 mm pitch
• Wire to board configurations and fittings
• Natural (white) colour
• Single Row
• Friction lock prevents accidental disconnection
• Ramp and polarising ribs
• Accepts KK 2478 and 2578 series terminals

Note

For suitable crimp tools see, for example, stock number 450-391

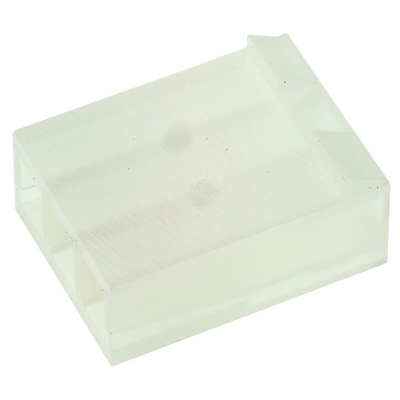

Molex Female Connector Housing, 3 Way, 1 Row - 2139 Series - 09-50-3031

Protect your terminal connectors with this receptacle from Molex to ensure dust and debris don't affect your connections. It's an ideal option for making multipole wire-to-PCB (printed circuit board) joins and features a lightweight yet tough nylon shell that mounts directly onto your cable. The industry-standard 3.96mm pitch provides an easy fit for your compatible connector. A friction lock then secures the connector into position, preventing vibrations or other disruptions from dislodging the connection.

Features & Benefits

• Compatible with KK 2478 and 2578 series terminals from Molex
• Straight body orientation enables easy handling and straightforward mating
• Depth of 15.55mm for fully isolated terminals lets you make snug, secure fits
• Flame-retardant housing for improved safety
• Low halogen materials reduces the risk of it releasing toxic fumes in the event of fire

Applications

• Hydroelectric systems
• Boating and marine operations
• Telecommunications
• Data processing

How can I ensure my connection isn't accidentally mismated?

This receptacle includes polarised ribs that prevent your connections from misalignment and mismating. This helps ensure your connection is strong and secure, for safe operation of your equipment.

3.96mm Molex KK Range
