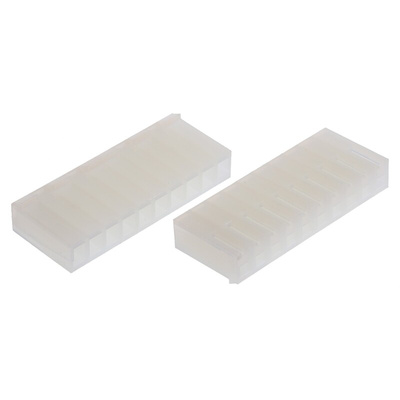

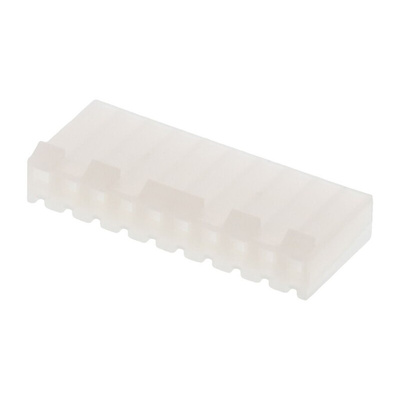

09-50-3101, Molex, KK 396 Female Connector Housing, 3.96mm Pitch, 10 Way, 1 Row, Корпус разъема

Molex KK Range of 2139 Series Housings

This range of Series 2139 Connector Housings feature a 3.96 mm pitch and form part of the KK Interconnect system from Molex, which provides a simple and economical way to make multipole connections to printed circuit boards. These types of fittings are an essential component that offer protection for the connection it is housing.

Features and Benefits

• 3.96 mm pitch
• Wire to board configurations and fittings
• Natural (white) colour
• Single Row
• Friction lock prevents accidental disconnection
• Ramp and polarising ribs
• Accepts KK 2478 and 2578 series terminals

Note

For suitable crimp tools see, for example, stock number 450-391

Molex Connector Housing, Straight Body Orientation, 10 Contacts - 2139 Series - 09-50-3101

Give a crimp terminal a safe place to live on your board with this connector housing from Molex. It's an essential piece of kit that holds links steady and shields them from dirt and moisture. A single-row configuration with 10 contacts gives you multi-circuit connectivity in a space-saving package. Thanks to a straight body orientation, it's a cinch to fit the housing onto a front-facing board in your panel. To complete your wire-to-board connection, use it with terminals from Molex's KK 2478 and 2578 series.

Features & Benefits

• Compact pitch size of 3.96mm to handle small conductors
• Integrated friction lock helps to prevent accidental disconnection
• Ramp and polarising ribs to minimise the risk of mating errors

Applications

• Agricultural equipment
• Audio-visual devices
• Marine engineering
• Packaging facilities

What's this housing made of?

This housing is made of tough, thermally resistant nylon that shrugs off abrasion and impact in challenging settings.

3.96mm Molex KK Range

Line Drawing

Datasheet - 09-50-3101
