09-50-3121, Molex, KK 396 Female Connector Housing, 3.96mm Pitch, 12 Way, 1 Row, Корпус разъема

Molex KK Range of 2139 Series Housings

This range of Series 2139 Connector Housings feature a 3.96 mm pitch and form part of the KK Interconnect system from Molex, which provides a simple and economical way to make multipole connections to printed circuit boards. These types of fittings are an essential component that offer protection for the connection it is housing.

Features and Benefits

• 3.96 mm pitch
• Wire to board configurations and fittings
• Natural (white) colour
• Single Row
• Friction lock prevents accidental disconnection
• Ramp and polarising ribs
• Accepts KK 2478 and 2578 series terminals

Note

For suitable crimp tools see, for example, stock number 450-391

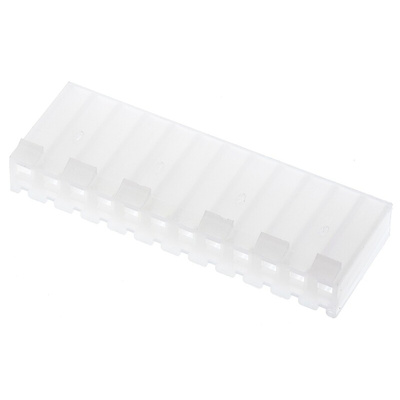

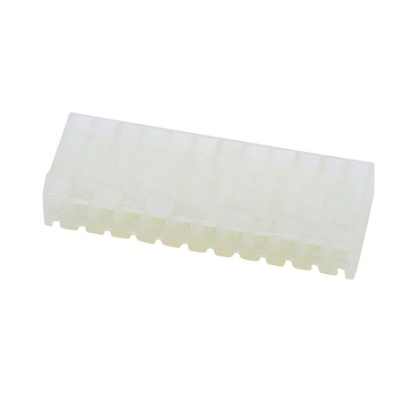

Molex KK 396 Series Connector Housing, Nylon, Straight - 09-50-3121

This Molex connector housing is designed with a female orientation and features 12 contacts. The KK 396 series connector offers a high density solution for various applications in automation, electronics, electrical, and mechanical industries.

Features & Benefits

• Female connector housing for easy connections
• 12 contacts provide versatility for different applications
• Nylon housing material ensures durability
• Cable mount design for convenient installation
• Straight orientation for efficient cable routing
• KK 396 series connector offers high density options

Applications

• Ideal for use with KK connectors
• Suitable for applications requiring a high-density connector design
• Used in automation systems for reliable connections

Can it be used with KK connectors?

Yes, this connector housing is specifically designed for use with KK connectors.

Will it work with high-density applications?

Yes, thanks to its design, the 12 contacts in this connector housing make it perfect for high-density applications.

Is it suitable for automation systems?

Yes, this Molex connector housing is perfect for automation systems seeking reliable connections.

3.96mm Molex KK Range

Datasheet

Line Drawing
