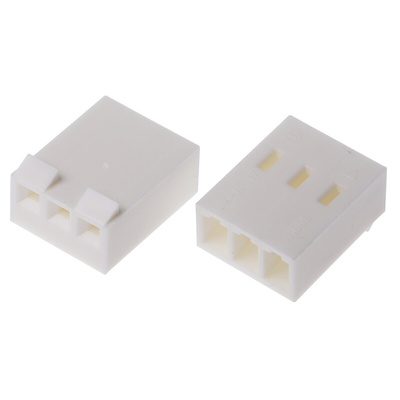

09-50-8031, Molex, KK 396 Female Connector Housing, 3.96mm Pitch, 3 Way, 1 Row, Корпус разъема

Socket Housings, 41695 Series

A range of KK 3.96mm Crimp Terminal Housings for KK 2478 and 2578 Series and Trifurcon™ 6838 Series terminals, see stock 173-3284 typical for KK and 670-2926 typical for Trifurcon.

Molex Connector Housing, Straight Body Orientation, 3.96mm Pitch - 41695 Series - 09-50-8031

Want an easy way to keep your wires in order? Use this connector housing from Molex. It accepts conductor sizes from 26 to 18AWG, so it's widely compatible. Getting set up is a matter of crimping your wire ends with terminals from either the 2478 series or 2578 series and then slotting them into the unit. When you hear a click, you know installation is complete. Thanks to its plug-and-play design, this housing is ideal for wire-to-board applications.

Features & Benefits

• Light 1.053g weight won't put strain on your equipment
• Glass-filled polyester body resists wear and tear to maintain firm connections in demanding conditions
• Compact dimensions of 12.75 (L) x 8.07 (W) x 15.88mm (D) for use in setups where space is limited

Applications

• Automotive industry
• Medical facilities
• Telecommunication networks

Is the connector housing fire-safe?

This product self-extinguishes in 10 seconds to boost workplace safety.

3.96mm Molex KK Range

Technical Drawing

Line Drawing

Datasheet - 09-50-8031
