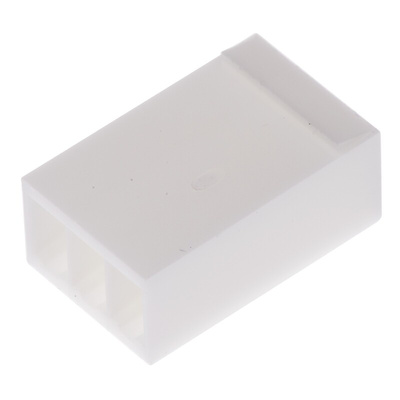

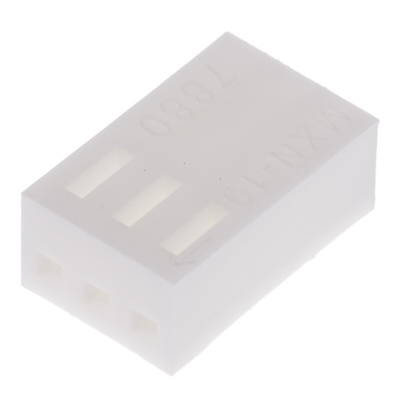

10-11-2033, Molex, KK 254 Female Connector Housing, 2.54mm Pitch, 3 Way, 1 Row, Корпус разъема

Housing, High Pressure, 7880 Series

These KK 254 7880 Series High Pressure Housings with the Standard Ramp friction lock option use the 7879 Series KK® 254 High Pressure crimp terminals see stock number 670-6672 typical.

Note

Mates with 2.54mm (.100") Pitch KK 254 PCB headers:
KK 254 Series 4030 stock number 453-145 typical
KK 254 Series 6373 stock number 679-5515 typical
KK 254 Series 6410 stock number 453-224 typical
KK 254 Series 42375 stock number 720-5637

Molex Connector Housing, Nylon Construction, 8.18 (L) x 5.08 (W) x 12.9mm (D) - 7880 Series - 10-11-2033

Making safe links between your cables is fuss-free with this female connector housing from Molex. It's compatible with KK 254 headers (such as 483-8477), so you can be sure of a reliably accurate fit. There are three contacts arranged in a single row and as the unit's just 8.8mm long, it slots neatly into a busy setup. A standard 2.54mm pitch means it's widely compatible.

Features & Benefits

• Lightweight at 294mg won't strain your PCB
• 250V rating for versatility
• Straight body orientation makes it easy to clip together with a corresponding header
• Durable nylon body resists flames and shrugs off scratches

Applications

• Telecommunication centres
• Manufacturing industry
• Product development

How do I insert the wires into this connector housing?

First, crimp the cables to fit this terminal and then insert them. The housing prevents wire ends from bending during installation and protects against contamination.

(2.54)/.100 KK Housing for shrouded type terminal Drawing

Datasheet

Line Drawing
