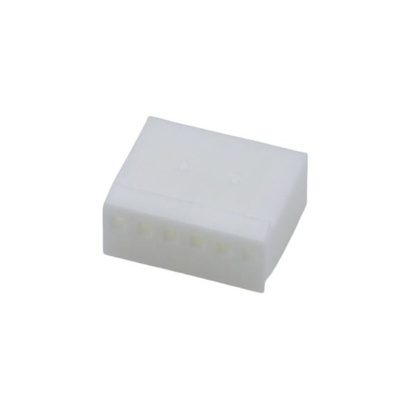

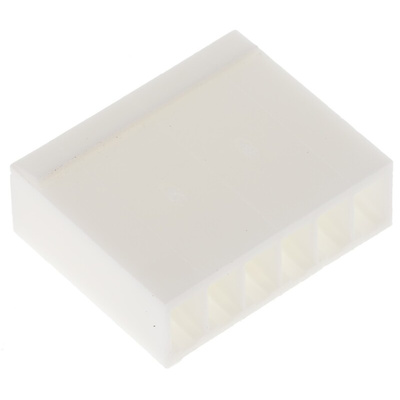

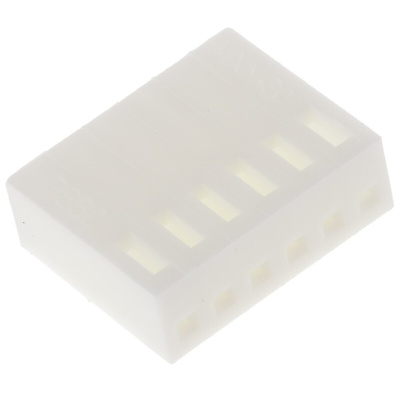

10-11-2063, Molex, KK 254 Female Connector Housing, 2.54mm Pitch, 6 Way, 1 Row, Корпус разъема

Housing, High Pressure, 7880 Series

These KK 254 7880 Series High Pressure Housings with the Standard Ramp friction lock option use the 7879 Series KK® 254 High Pressure crimp terminals see stock number 670-6672 typical.

Note

Mates with 2.54mm (.100") Pitch KK 254 PCB headers:
KK 254 Series 4030 stock number 453-145 typical
KK 254 Series 6373 stock number 679-5515 typical
KK 254 Series 6410 stock number 453-224 typical
KK 254 Series 42375 stock number 720-5637

Molex Connector Housing, Nylon Material, 2.54mm Pitch - 7880 Series - 10-11-2063

Link a crimp terminal to your circuit board in a flash with this connector housing from Molex. It's a female unit with six contacts, so it helps you arrange a multi-circuit setup. As the body is made of nylon, you can trust it stands up to impact and wear, giving you long-lasting use in harsh industrial settings. This material is low-halogen to minimise the release of toxic fumes if there's a fire.

Features & Benefits

• Measures 15.8 (L) x 5.08mm (W), so it's compact enough to fit into small enclosures
• Works with brass and phosphor-bronze terminals for flexible installation
• 2.54mm pitch for easy conductor installation

Applications

• Aerospace technology
• Automotive industry
• Medical devices
• Computer equipment

Is this housing fire-safe?

Yes. To boost workplace fire safety, it's self-extinguishing and stops burning in 10 seconds or less to prevent the spread of flames.

(2.54)/.100 KK Housing for shrouded type terminal Drawing

Datasheet

Line Drawing
