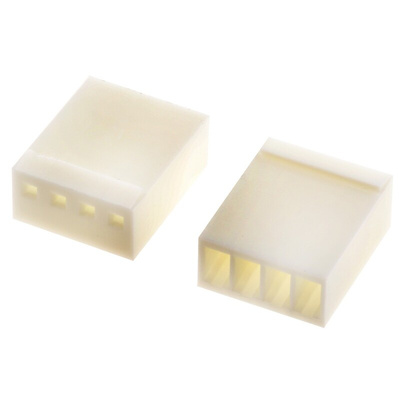

10-11-2043, Molex, KK 254 Female Connector Housing, 2.54mm Pitch, 4 Way, 1 Row, Корпус разъема

Housing, High Pressure, 7880 Series

These KK 254 7880 Series High Pressure Housings with the Standard Ramp friction lock option use the 7879 Series KK® 254 High Pressure crimp terminals see stock number 670-6672 typical.

Note

Mates with 2.54mm (.100") Pitch KK 254 PCB headers:
KK 254 Series 4030 stock number 453-145 typical
KK 254 Series 6373 stock number 679-5515 typical
KK 254 Series 6410 stock number 453-224 typical
KK 254 Series 42375 stock number 720-5637

Molex Connector Housing, Straight Body Orientation, 10.72 (L) x 5.08 (W) x 12.9mm (D) - KK 254 Series - 10-11-2043

Need to find a home for your crimp-terminated wires? Choose this female connector housing from Molex for the job. It has a straight orientation and a standard 2.54mm pitch to make the connection of wire-to-board cables a breeze. This assembly fits like a glove with Molex's KK Series components, such as the 6410 series straight pin header (483-8483).

Features & Benefits

• Connect up to four circuits from this single unit to streamline your setup
• Single row for a space-saving design
• Nylon construction resists impacts, corrosion, abrasion and harsh temperatures for a longer service life

Applications

• Factory automation
• Industrial power supplies
• Automotive manufacturing

Does the housing offer any fire safety features?

Yes, this connector housing is made from fire-retardant material that self-extinguishes inside 10 seconds, for a safety boost in the event of fire.
