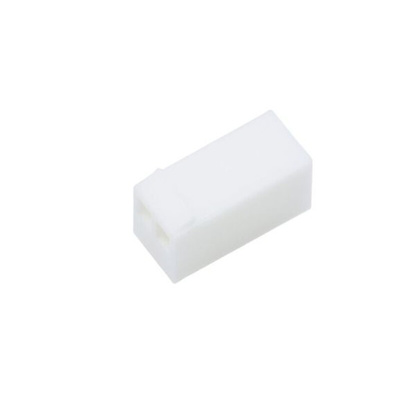

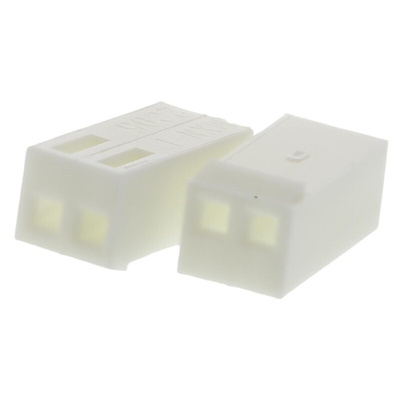

22-01-2027, Molex, 2695 Female Connector Housing, 2.54mm Pitch, 2 Way, 1 Row, Корпус разъема

Molex KK Range of 2695 Series Housings

This range of Series 2695 Connector Housings feature a 2.54 mm pitch and form part of the KK Interconnect system from Molex, which provide a simple and economical way to make multipole connections to printed circuit boards. When fitting the terminals into the housings it is essential that the Molex insertion tool is used for the correct fitting of these terminals. Please see engineering note for more details.

Features and Benefits

• 2.54 mm pitch
• Wire to board connections and fittings
• Natural (white) colour
• Single Row
• Housings 22-01-2xxx have friction lock ramps
• Housings 22-01-3xxx have friction lock ramps and polarizing ribs

Molex Connector Housing, Nylon Construction, 2.54mm Pitch - 2695 Series - 22-01-2027

Click your circuitry together without fuss using this connector housing from Molex. Its simple plug-in mating method cuts down on wiring time, connecting components to your board in a snap. With its integrated friction ramps, the unit locks to the PCB to keep connections tied down against sudden movement and vibration. Thanks to a single-row contact layout and dimensions of just 5.64 (L) x 4.82mm (W), this is a compact option that fits easily into a busy enclosure.

Features & Benefits

• Accommodates 2 circuits for efficient connectivity
• Terminals (such as 170-7138) crimp into place to ensure reliable connections
• Nylon material provides protection against electric shocks

Applications

• Automotive industry
• Surveillance systems
• Server management

What kinds of connector can I use this unit with?

This housing connects with headers that have a standard 2.54mm pitch, making it widely compatible.
