22-01-2021, Molex, KK 254 Female Connector Housing, 2.54mm Pitch, 2 Way, 1 Row, Корпус разъема

Molex KK Range of 2695 Series Housings

This range of Series 2695 Connector Housings feature a 2.54 mm pitch and form part of the KK Interconnect system from Molex, which provide a simple and economical way to make multipole connections to printed circuit boards. When fitting the terminals into the housings it is essential that the Molex insertion tool is used for the correct fitting of these terminals. Please see engineering note for more details.

Features and Benefits

• 2.54 mm pitch
• Wire to board connections and fittings
• Natural (white) colour
• Single Row
• Housings 22-01-2xxx have friction lock ramps
• Housings 22-01-3xxx have friction lock ramps and polarizing ribs

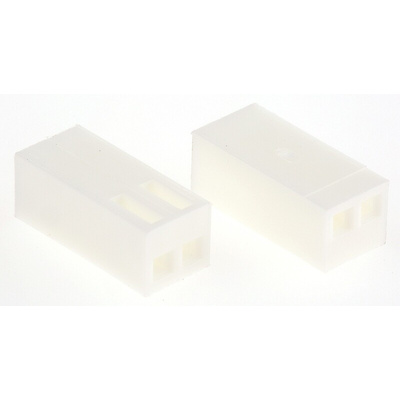

Molex Female Connector Housing, 2 Way, 1 Row - 2695 Series - 22-01-2021

Shield your wire-to-printed circuit board (PCB) connectors from dust and contamination with this tough nylon housing from Molex. It's a two-way receptacle that mounts directly onto your cable and features a straight oriented body and standard 2.54mm pitch, making it simple to insert your terminals. Be sure to use the correct Molex insertion tool (710-6528) when placing the terminals to ensure they're correctly fitted. A friction lock ramp in each receptacle secures the terminal into position and prevents your connections from becoming dislodged due to vibrations or shock.

Features & Benefits

• Length of 5.64mm and width of 4.82mm for a compact size suitable for crowded setups
• Flame-retardant nylon material stops burning within 10 seconds for improved fire safety
• Low halogen content reduces the risk of toxic fumes in case of fire

Applications

• Medical industry
• Hydroelectric operations
• Pharmaceutical manufacturing
• Computer electronics

What connectors will this receptacle accommodate?

This connector housing is compatible with KK crimp terminals 2759 and 4809. It can be mated with a range of PCB headers in the KK 254 series.

Engineering Note for the Molex KK Range of Series 2695 Housings and associated Contacts

Datasheet

Line Drawing

Specification Sheet - KK 254/.100 Wire-to-Board & Board-to-Board Connector System
