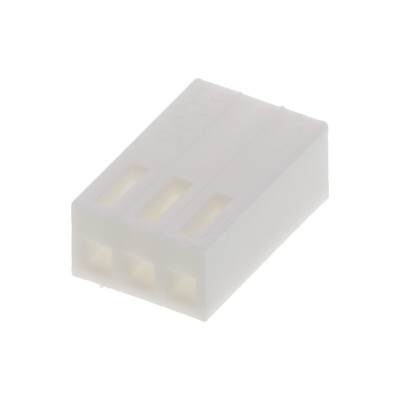

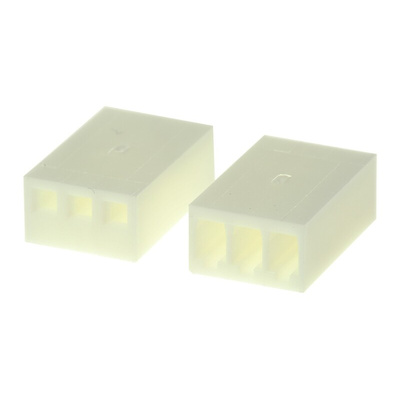

22-01-2031, Molex, KK 254 Female Connector Housing, 2.54mm Pitch, 3 Way, 1 Row, Корпус разъема

Molex KK Range of 2695 Series Housings

This range of Series 2695 Connector Housings feature a 2.54 mm pitch and form part of the KK Interconnect system from Molex, which provide a simple and economical way to make multipole connections to printed circuit boards. When fitting the terminals into the housings it is essential that the Molex insertion tool is used for the correct fitting of these terminals. Please see engineering note for more details.

Features and Benefits

• 2.54 mm pitch
• Wire to board connections and fittings
• Natural (white) colour
• Single Row
• Housings 22-01-2xxx have friction lock ramps
• Housings 22-01-3xxx have friction lock ramps and polarizing ribs

Molex Connector Housing, Female, 3 Way - KK 254 Series - 22-01-2031

Features & Benefits

• Low halogen content for reduced risk of environmental contamination
• Light weight of 0.4g for minimal strain on PCBs
• Straight body orientation for convenient front-facing mounting

Applications

• Machine prototypes
• Automated industrial systems
• Automotive engineering

Is this header flame-retardant?

Yes, it is. This housing stops burning in ten seconds or less, reducing the risk of flames spreading.

Engineering Note for the Molex KK Range of Series 2695 Housings and associated Contacts

Datasheet

Line Drawing

Product Specification Sheet - KK 254 / .100 Wire-to-Board & Board-to-Board Connector System
