22-01-2047, Molex, KK 254 Female Connector Housing, 2.54mm Pitch, 4 Way, 1 Row, Корпус разъема

Molex KK Range of 2695 Series Housings

This range of Series 2695 Connector Housings feature a 2.54 mm pitch and form part of the KK Interconnect system from Molex, which provide a simple and economical way to make multipole connections to printed circuit boards. When fitting the terminals into the housings it is essential that the Molex insertion tool is used for the correct fitting of these terminals. Please see engineering note for more details.

Features and Benefits

• 2.54 mm pitch
• Wire to board connections and fittings
• Natural (white) colour
• Single Row
• Housings 22-01-2xxx have friction lock ramps
• Housings 22-01-3xxx have friction lock ramps and polarizing ribs

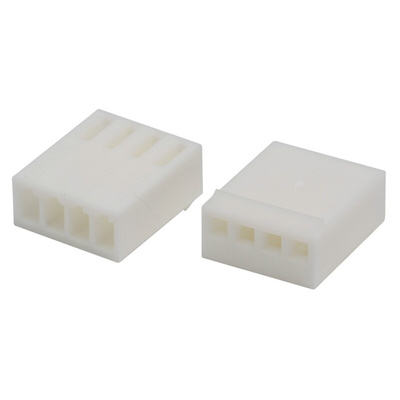

Molex Female Connector Housing, 4 Way, 1 Row - 2695 Series - 22-01-2047

Keep dust and particulates away from your terminal connections with this robust nylon housing from Molex. It's designed to be used with Molex crimp terminals 2759 and 4809, along with a range of PCB (printed circuit board) headers in the KK range. You can use it to house wire-to-PCB connections – it features embedded friction lock ramps that secure the terminals into position so they won't dislodge due to vibration or shock. The four-way receptacles are fully isolated to provide enhanced protection from debris.

Features & Benefits

• Space-saving dimensions of 10.72mm length and 4.82mm width allow compact fits in tight spaces
• Flame-retardant nylon construction offers improved fire safety
• Low-halogen content reduces the risk of toxic fumes being released in case of fire

Applications

• Security systems
• Aerospace manufacturing
• Automotive industry
• Consumer electronics

How do I insert the terminal into the housing?

This housing's straight-oriented body and standard 2.54mm pitch makes a convenient angle to insert your terminal into the receptacle. It's important that you use the Molex tool (710-6528) designed for the purpose to make your insertion, so you can be sure of correct positioning.
