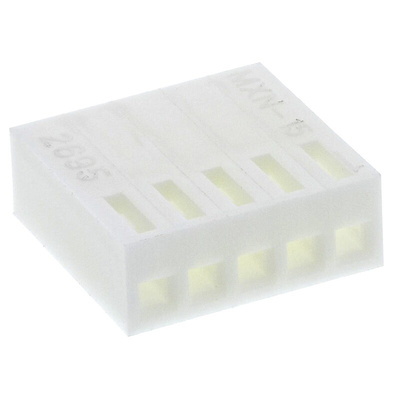

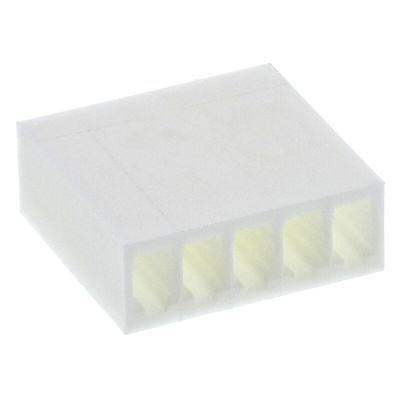

22-01-2051, Molex, KK 254 Female Connector Housing, 2.54mm Pitch, 5 Way, 1 Row, Корпус разъема

Molex KK Range of 2695 Series Housings

This range of Series 2695 Connector Housings feature a 2.54 mm pitch and form part of the KK Interconnect system from Molex, which provide a simple and economical way to make multipole connections to printed circuit boards. When fitting the terminals into the housings it is essential that the Molex insertion tool is used for the correct fitting of these terminals. Please see engineering note for more details.

Features and Benefits

• 2.54 mm pitch
• Wire to board connections and fittings
• Natural (white) colour
• Single Row
• Housings 22-01-2xxx have friction lock ramps
• Housings 22-01-3xxx have friction lock ramps and polarizing ribs

Molex Connector Housing, Nylon Construction, 13.26 (L) x 4.82 (W) x 12.7mm (D) - KK 254 Series - 22-01-2051

To whizz through wire-to-board connections with minimal fuss, use this connector housing from Molex. It has five contacts, so you can slot multiple headers into one component, saving you time and helping to keep your PCB clutter-free. As you get 10 units in a pack, you've got what you need for lots of wiring jobs.

Features & Benefits

• Flame-retardant for safety, so it won't contribute to the spread of a fire
• Built-in polarisation feature reduces the chance of incorrect mating
• Low mating interface pitch of 2.54mm makes it a space-saving option

Applications

• Data and control centres
• Manufacturing facilities
• Oil and gas industries
• Automated assembly lines

What material is the connector housing made from?

This unit's made of PA, which resists abrasion, moisture and chemical damage. This makes it a practical choice for harsh industrial settings.
