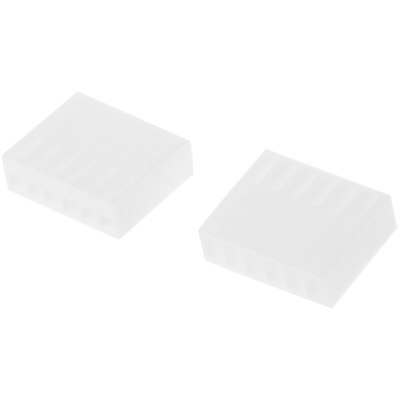

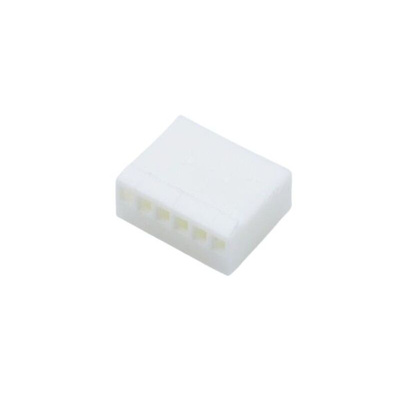

22-01-2067, Molex, KK 254 Female Connector Housing, 2.54mm Pitch, 6 Way, 1 Row, Корпус разъема

Molex KK Range of 2695 Series Housings

This range of Series 2695 Connector Housings feature a 2.54 mm pitch and form part of the KK Interconnect system from Molex, which provide a simple and economical way to make multipole connections to printed circuit boards. When fitting the terminals into the housings it is essential that the Molex insertion tool is used for the correct fitting of these terminals. Please see engineering note for more details.

Features and Benefits

• 2.54 mm pitch
• Wire to board connections and fittings
• Natural (white) colour
• Single Row
• Housings 22-01-2xxx have friction lock ramps
• Housings 22-01-3xxx have friction lock ramps and polarizing ribs

Molex Connector Housing, Straight Body Orientation, Nylon Construction - KK 254 Series - 22-01-2067

Keep communication flowing freely in your control circuit with this connector housing from Molex. It's just what you need for protecting transmission signals between PCBs, helping to optimise your productivity. With six contacts, it's a breeze to hook up multiple devices just using the one unit. This keeps your circuit board organised, space-efficient and easy to maintain. Thanks to its robust nylon housing, you can rely on this connector's longevity in harsh and humid settings.

Features & Benefits

• Friction ramp ensures secure mating with a male connector
• Space-saving dimensions of 15.8 (L) x 4.82 (W) x 12.7mm (D) to maximise board packing efficiency
• Straight-body orientation for easy handling and straightforward assembly

Applications

• Automotive industry
• Consumer electronics
• Hospitals and medical centres
• Aerospace engineering

Is this connector housing insulated?

Yes, the component's PA material provides insulation to protect you against electric shocks.
