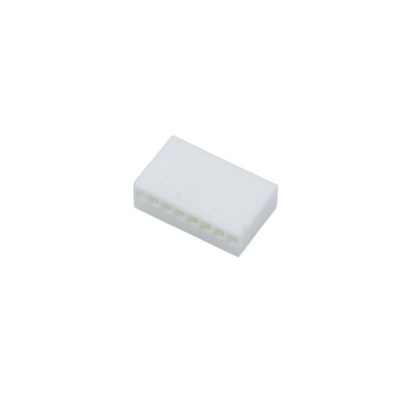

22-01-2087, Molex, KK 254 Female Connector Housing, 2.54mm Pitch, 8 Way, 1 Row, Корпус разъема

Molex KK Range of 2695 Series Housings

This range of Series 2695 Connector Housings feature a 2.54 mm pitch and form part of the KK Interconnect system from Molex, which provide a simple and economical way to make multipole connections to printed circuit boards. When fitting the terminals into the housings it is essential that the Molex insertion tool is used for the correct fitting of these terminals. Please see engineering note for more details.

Features and Benefits

• 2.54 mm pitch
• Wire to board connections and fittings
• Natural (white) colour
• Single Row
• Housings 22-01-2xxx have friction lock ramps
• Housings 22-01-3xxx have friction lock ramps and polarizing ribs

Molex Connector Housing, White Colour, Cable Mounting - KK 254 Series - 22-01-2087

Want to make multiple cable connections to your PCB? Grab this female connector housing from Molex. It's a handy wire-to-board solution with eight contacts, so you can make lots of links and boost your system's abilities. The unit's 2.54mm pitch is standard for breadboards, making this a versatile option that supports high-density mounting.

Features & Benefits

• Fire-retardant housing stops burning within 10 seconds to boost fire safety
• Single-row, straight-body orientation for a space-efficient fit into your setup
• Nylon housing withstands impacts, abrasion and corrosion, as well as harsh temperatures, to deliver a long service life

Applications

• Industrial automation
• Mechanical engineering
• Assembly lines
• Robotics systems

What size is this unit?

The connector housing has compact dimensions of 20.88 (L) x 4.82 (W) x 12.7mm (D) so it's an ideal choice for small-scale systems.

Engineering Note for the Molex KK Range of Series 2695 Housings and associated Contacts

Datasheet

Line Drawing
