22-01-2107, Molex, 2695 Female Connector Housing, 2.54mm Pitch, 10 Way, 1 Row, Корпус разъема

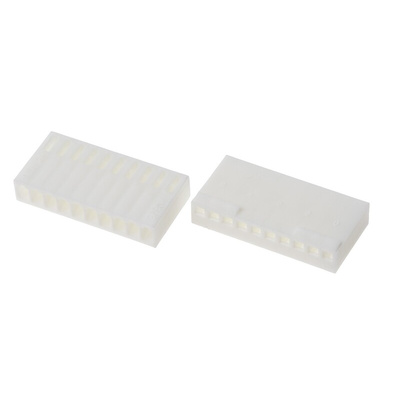

Molex KK Range of 2695 Series Housings

This range of Series 2695 Connector Housings feature a 2.54 mm pitch and form part of the KK Interconnect system from Molex, which provide a simple and economical way to make multipole connections to printed circuit boards. When fitting the terminals into the housings it is essential that the Molex insertion tool is used for the correct fitting of these terminals. Please see engineering note for more details.

Features and Benefits

• 2.54 mm pitch
• Wire to board connections and fittings
• Natural (white) colour
• Single Row
• Housings 22-01-2xxx have friction lock ramps
• Housings 22-01-3xxx have friction lock ramps and polarizing ribs

Molex Connector Housing, 2.54mm Pitch, For Use With Crimp Terminals - 2695 Series - 22-01-2107

Put sensitive wiring under wraps with this Molex connector housing. It's made of resilient nylon, so it resists the impacts and abrasion you'd expect in a busy workplace. A simple plug-in mating style means the unit's a breeze to connect up. It's widely compatible, thanks to its industry-standard 2.54mm pitch. As the housing locks in place with built-in friction ramps, the connections are secure, even in vibrating conditions.

Features & Benefits

• Takes up to 10 conductors, providing broad system coverage
• Single-row contact layout fits neatly into compact enclosures

Applications

• Domestic appliances
• Power distribution networks
• Manufacturing industry

What terminals are compatible with this housing?

You can use the housing to accommodate Molex terminals from the KK series. These are crimp-style units that are compressed around conductors using a hand tool to achieve an air-tight and secure fit.

Engineering Note for the Molex KK Range of Series 2695 Housings and associated Contacts
